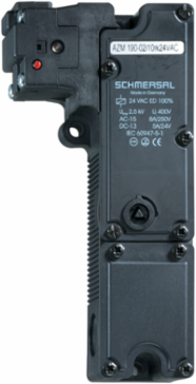

Schmersal 131188851 AZM190 Solenoid Interlock, 24 VDC, IP67, 52 mm Width, Thermoplastic Enclosure
- MPN: 131188851
- PPN: SCM-131188851
CAD
$703.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM190 Solenoid Interlock, 24 VDC, IP67, 52 mm Width, Thermoplastic Enclosure
Features
- Thermoplastic enclosure
- Long life
- Interlock with protection against incorrect locking.

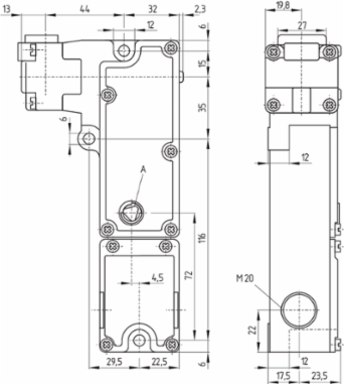

- 89 mm x 178 mm x 41 mm
- Actuating head can be repositioned by 4 x 90°
- 2 cable entries M 20 x 1.5
- Wiring compartment
- Slim design, particularly suitable for fitting on hinged doors, aluminium profiles and fencing
- Sealing mechanism to prevent the ingress of dirt
- Cut clamp termination
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- EN ISO 13849-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 4 A
- Required rated short-circuit current to EN 60947-5-1
- 1,000 A
- Switching principle
- Creep circuit element
Rated control voltage24 VDC
Electrical power consumption, maximum8.5 W
Switching frequency1.2 /h
Mechanical data - Dimensions
- Length of sensor
- 41 mm
- Height of sensor
- 178 mm
Width of sensor52 mm
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 250 V
Rated impulse withstand voltage U4 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 2,000,000 Operations
B10d Normally open contact (NO)1,000,000 Operations
General data - Features
- Power to unlock
- Yes
- Number of actuating directions
- 4
- Number of safety contacts
- 3
Emergency releaseYes
Number of cable glands2
General data
- Standards
- EN 60947-5-1 | BG-GS-ET-19
- Active principle
- electromechanical
- Material of the contacts, electrical
- Silver
Coding level according to ISO 14119Low
Enclosure materialGlass-fibre, reinforced thermoplastic
Gross weight480 g
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67 to EN 60529
- Ambient temperature, maximum
- +50 °C
Ambient temperature, minimum+0 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals
- Cable section, minimum
- 1 x 0.5 mm²
- Note (Cable section)
- All indications about the cable section are including the conductor ferrules.
Cable entryM20 cable gland
Cable section, maximum1 x 1.5 mm²
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Latching force
- 20 N
- Actuating speed, maximum
- 0.3 m/s
Clamping force1,950 N
Positive break force, minimum20 N
Approval - Standards
- Certificates
- TÜV | cULus | CCC | EAC
