Schmersal 103032732 AZM201 Solenoid Interlock with IP66/IP67 Protection, 2000N Holding Force, Thermoplastic Enclosure

MPN: 103032732
PPN: SCM-103032732

$1131.09

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM201 Solenoid Interlock with IP66/IP67 Protection, 2000N Holding Force, Thermoplastic Enclosure

Features

Power to lock
Thermoplastic enclosure
Max. length of the sensor chain 200 m
Self-monitoring series-wiring
Coding in accordance to ISO 14119 by using RFID-Technology
3 LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Suitable for hinged and sliding guards
Intelligent diagnosis
Manual release
Protection class IP66, IP67
High holding force 2000
symmetrical construction form, assembly on 40mm profiles
OSSD safety outputs
Emergency exit / Emergency release suitable for retrofitting

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputs	X1 and X2
Current consumption at 24 V	5 mA
Test pulse interval, minimum	100 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Electrical data - Serial diagnostic SD

Designation, Serial diagnostic SD	OUT
Design of control elements	short-circuit proof, p-type

Operation current	150 mA
Wiring capacitance	50 nF

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption with magnet ON, average	200 mA
Rated operating voltage	24 VDC
Required rated short-circuit current	100 A
Time to readiness, maximum	4,000 ms

No-load supply current I	50 mA
Current consumption with magnet ON, peak	700 mA / 100 ms
Operating current	1,200 mA
External wire and device fuse rating	2 A gG
Switching frequency, maximum	1 Hz

Note

Note (General)	As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

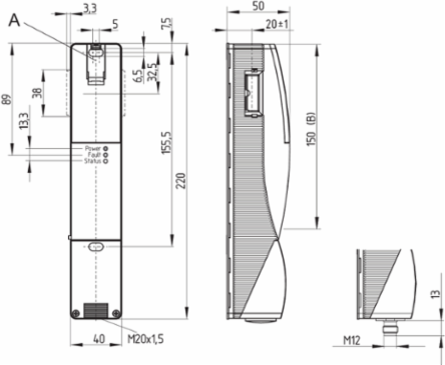

Mechanical data - Dimensions

Length of sensor	50 mm
Height of sensor	220 mm

Width of sensor	40 mm

Pin assignment

PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	OUT serial diagnostic output
PIN 7	Y2 Safety output 2

PIN 2	X1 Safety input 1
PIN 4	Y1 Safety output 1
PIN 6	X2 Safety input 2
PIN 8	IN serial diagnostic input

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately. \| Triangular key for AZM 201

Electrical data - Magnet control

Designation, Magnet control	IN
Magnet switch-on time	100 %
Test pulse interval, minimum	40 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	5 ms
Classification ZVEI CB24I, Sink	C0

General data - Features

Power to lock	Yes
Serial diagnostics	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral system diagnostics, status	Yes
Number of series-wiring of sensors	31

Solenoid interlock monitored	Yes
Manual release	Yes
Cross-circuit detection	Yes
Safety functions	Yes
Number of safety contacts	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	Low
Frequency band RFID	125 kHz
Enclosure material	Glass-fibre, reinforced thermoplastic
Duration of risk, maximum	200 ms
Reaction time, switching off safety outputs via safety inputs, maximum	1.5 ms

Coding	Universal coding
Working principle	RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	596 g
Reaction time, switching off safety outputs via actuator, maximum	100 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Design of control elements	short-circuit proof, p-type
Current at Voltage drop U	2 A
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C2

Rated operating current (safety outputs)	250 mA
Voltage drop U	2 V
Leakage current I	0.5 mA
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	0.5 ms
Classification ZVEI CB24I, Sink	C1 \| C2

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	1.90 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	1.60 x 10⁻⁴
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Storage and transport temperature, minimum	-25 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm
Protection class	III

Ambient temperature	-25 ... +60 °C
Storage and transport temperature, maximum	+85 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Connector M12, 8-pole
Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current

Length of sensor chain, maximum	200 m
Note (series-wiring)	Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Note (clamping force F	1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
Note (clamping force F	1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
Actuating speed, maximum	0.2 m/s
Tightening torque of the fixing screws, maximum	8 Nm
Tightening torque of the fastening screws for the housing cover, maximum	1 Nm

Holding force F	2,000 N
Holding force F	2,600 N
Latching force	30 N
Type of the fixing screws	2x M6
Tightening torque of the fastening screws for the housing cover, minimum	0.7 Nm
Note	Torx T10
