Schmersal 103025868 AZM201 Solenoid Interlock, 40 mm x 220 mm x 50 mm, 2600 N Holding Force

MPN: 103025868
PPN: SCM-103025868

$1523.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

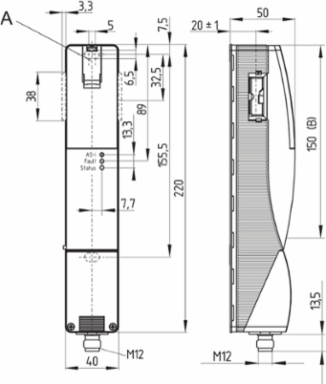

AZM201 Solenoid Interlock, 40 mm x 220 mm x 50 mm, 2600 N Holding Force

Features

Thermoplastic enclosure
High holding force 2000
40 mm x 244 mm x 50 mm
Interlock with protection against incorrect locking.
Double-insulated
Long life
Integrated AS-Interface
Solenoid interlock with integrated AS-i Safety Interface
Universal repeatedly teachable or individual coding because of the RFID technology
I-variants with coding level HIGH to ISO 14119

Documentation & Downloads

Specifications

Electrical data

Time to readiness, maximum	4,000 ms

Switching frequency, maximum	1 Hz

Electrical data - AS-Interface specification

AS-i Specification	Safety-Slave
AS-i Profile	S-7.B.F.E
AS-i, ID-Code	0xB
AS-i, ID-Code2	0xE
AS-i Input, Channel 2	Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Outputs, DO 1	No Function
AS-i Outputs, DO 3	No Function
AS-i Parameter bits, P1	Solenoid interlock locked
AS-i Parameter bits, P3	Internal device error (FID)
AS-i Input module address	0

AS-i Version	V 3.0
AS-i, IO-Code	0x7
AS-i, ID-Code1	0xF
AS-i Input, Channel 1	Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0	Solenoid control
AS-i Outputs, DO 2	No Function
AS-i Parameter bits, P0	Safety guard and actuator detected
AS-i Parameter bits, P2	Magnet voltage in tolerance range
Note (AS-i Parameter bits)	FID: periphery error
Note (AS-i Input module address)	Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

Mechanical data - Dimensions

Length of sensor	50 mm
Height of sensor	220 mm

Width of sensor	40 mm

Pin assignment

PIN 1	AS-Interface +
PIN 3	AS-Interface -

PIN 2	Aux - (P)
PIN 4	Aux + (P)

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately. \| Triangular key for AZM 201

Electrical data - Magnet control

Magnet switch-on time	100 %

General data - Features

Power to unlock	Yes
Latching	Yes
Safety functions	Yes
Number of actuating directions	2

Solenoid interlock monitored	Yes
Manual release	Yes
Integral system diagnostics, status	Yes

General data

Standards	EN IEC 62026-2 \| EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	High
Frequency band RFID	125 kHz
Enclosure material	Glass-fibre, reinforced thermoplastic
Reaction time, maximum	100 ms

Coding	Individual coding, multiple teaching
Working principle	RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	585 g
Duration of risk, maximum	200 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - AS Interface

Rated operating voltage	26.5 ... 31.6 VDC (Protection against polarity reversal)

AS-i Current consumption, maximum	100 mA

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	1.81 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	1.59 x 10⁻⁴
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Storage and transport temperature, minimum	-25 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm
Protection class	III

Ambient temperature	-25 ... +60 °C
Storage and transport temperature, maximum	+85 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Connector plug M12, 4-pole, (A-coding)

Safety classification - Guard locking function

Performance Level, up to	e

Note (Performance Level)	Information for the safety classification of the guard locking function is documented in the "Operating instructions" or in the "Operation and mounting" instructions.

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Note (clamping force F	1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use.
Note (clamping force F	1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use.
Actuating speed, maximum	0.2 m/s
Tightening torque of the fixing screws, maximum	8 Nm
Tightening torque of the fastening screws for the housing cover, maximum	1 Nm

Holding force F	2,000 N
Holding force F	2,600 N
Latching force	30 N
Type of the fixing screws	2x M6
Tightening torque of the fastening screws for the housing cover, minimum	0.7 Nm
Note	Torx T10

Accessory

Recommendation (actuator)	AZ/AZM201-B1 \| AZ/AZM201-B30

Approvals - Standards

Certificates	TÜV \| cULus \| ASi-SaW \| FCC \| IC

Electrical data - Auxiliary voltage

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Rated operating voltage	24 VDC

Current consumption	500 mA

Status indication

Note (LED switching conditions display)	Status and diagnostics: Transmitter + receiver \| (2) LED red: Internal device error \| (3) LED yellow: Device condition
