Schmersal 103025862 AZM 201 AS Solenoid Interlock, 40 mm x 50 mm, 2000 N Holding Force, RFID
- MPN: 103025862
- PPN: SCM-103025862
CAD
$1485.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM 201 AS Solenoid Interlock, 40 mm x 50 mm, 2000 N Holding Force, RFID
Features
- Thermoplastic enclosure
- High holding force 2000
- 40 mm x 244 mm x 50 mm
- Interlock with protection against incorrect locking.
- Double-insulated
- Long life
- Integrated AS-Interface
- Solenoid interlock with integrated AS-i Safety Interface
- Universal repeatedly teachable or individual coding because of the RFID technology
- I-variants with coding level HIGH to ISO 14119
Documentation & Downloads
Specifications
Electrical data
| Time to readiness, maximum | 4,000 ms |
|---|
| Switching frequency, maximum | 1 Hz |
|---|
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-7.B.F.E |
| AS-i, ID-Code | 0xB |
| AS-i, ID-Code2 | 0xE |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 1 | No Function |
| AS-i Outputs, DO 3 | No Function |
| AS-i Parameter bits, P1 | Solenoid interlock locked |
| AS-i Parameter bits, P3 | Internal device error (FID) |
| AS-i Input module address | 0 |
| AS-i Version | V 3.0 |
|---|---|
| AS-i, IO-Code | 0x7 |
| AS-i, ID-Code1 | 0xF |
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 | Solenoid control |
| AS-i Outputs, DO 2 | No Function |
| AS-i Parameter bits, P0 | Safety guard and actuator detected |
| AS-i Parameter bits, P2 | Magnet voltage in tolerance range |
| Note (AS-i Parameter bits) | FID: periphery error |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |

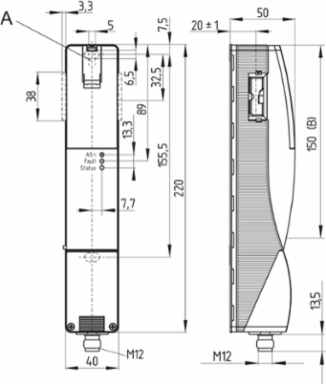

Mechanical data - Dimensions
| Length of sensor | 50 mm |
|---|---|
| Height of sensor | 220 mm |
| Width of sensor | 40 mm |
|---|
Pin assignment
| PIN 1 | AS-Interface + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | Aux - (P) |
|---|---|
| PIN 4 | Aux + (P) |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. | Triangular key for AZM 201 |
|---|
Electrical data - Magnet control
| Magnet switch-on time | 100 % |
|---|
General data - Features
| Power to lock | Yes |
|---|---|
| Latching | Yes |
| Safety functions | Yes |
| Number of actuating directions | 2 |
| Solenoid interlock monitored | Yes |
|---|---|
| Manual release | Yes |
| Integral system diagnostics, status | Yes |
General data
| Standards | EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Frequency band RFID | 125 kHz |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Coding | Universal coding |
|---|---|
| Working principle | RFID |
| Transmitter output RFID, maximum | -6 dB/m |
| Gross weight | 538 g |
| Duration of risk, maximum | 200 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|
Electrical data - AS Interface
| Rated operating voltage | 26.5 ... 31.6 VDC (Protection against polarity reversal) |
|---|
| AS-i Current consumption, maximum | 100 mA |
|---|
Safety classification - Interlocking function
| Performance Level, up to | e |
|---|---|
| PFH value | 1.81 x 10⁻⁹ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Category | 4 |
|---|---|
| PFD value | 1.59 x 10⁻⁴ |
| Mission time | 20 Year(s) |
Ambient conditions
| Degree of protection | IP67 | IP66 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 150 Hz, amplitude 0.35 mm |
| Protection class | III |
| Ambient temperature | -25 ... +60 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Note (clamping force F | 1,000 N when used with the AZ/AZM201-B30 actuator, for indoor use. |
| Note (clamping force F | 1,300 N when used with the AZ/AZM201-B30 actuator, for indoor use. |
| Actuating speed, maximum | 0.2 m/s |
| Tightening torque of the fixing screws, maximum | 8 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 1 Nm |
| Holding force F | 2,000 N |
|---|---|
| Holding force F | 2,600 N |
| Latching force | 30 N |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.7 Nm |
| Note | Torx T10 |
Accessory
| Recommendation (actuator) | AZ/AZM201-B1 | AZ/AZM201-B30 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | ASi-SaW | FCC | IC |
|---|
Electrical data - Auxiliary voltage
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| Rated operating voltage | 24 VDC |
| Current consumption | 500 mA |
|---|
Status indication
| Note (LED switching conditions display) | Status and diagnostics: Transmitter + receiver | (2) LED red: Internal device error | (3) LED yellow: Device condition |
|---|
