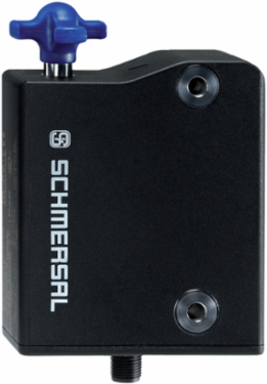

Schmersal 103001415 AZM300 Solenoid Interlock, 120 mm Length, IP69, RFID Technology
- MPN: 103001415
- PPN: SCM-103001415
CAD
$971.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM300 Solenoid Interlock, 120 mm Length, IP69, RFID Technology
Features
- Repeated individual coding with RFID technology
- Coding level "High" according to ISO 14119
- Connector M12, 8-pole
- Power to unlock
- Actuator monitored
- Diagnostic output
- hygienic design
- Protection class IP 69
- Suitable for mounting to profile systems
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- 3 different directions of actuation
- Compact design
- 3 LEDs to show operating conditions
- Suitable for hinged and sliding guards

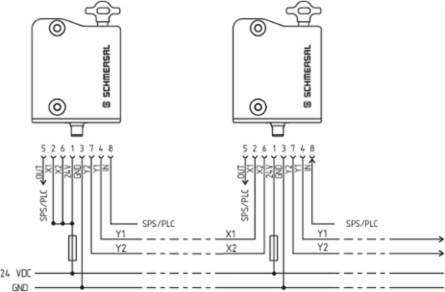

- Series-wiring
- Manual release
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 5 mA
- Test pulse interval, minimum
- 100 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Current consumption with magnet ON, average
- 200 mA
- Rated operating voltage
- 24 VDC
- External wire and device fuse rating
- 2 A gG
- Switching frequency, maximum
- 0.5 Hz
No-load supply current I100 mA
Current consumption with magnet ON, peak350 mA / 200 ms
Required rated short-circuit current100 A
Time to readiness, maximum5,000 ms
Note
- Note (General)

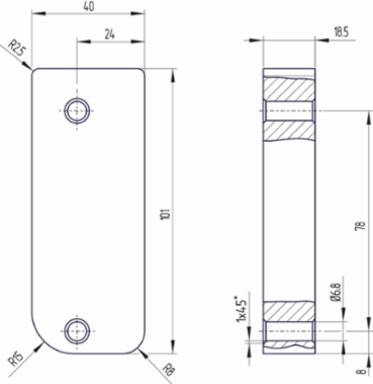

- For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. | For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

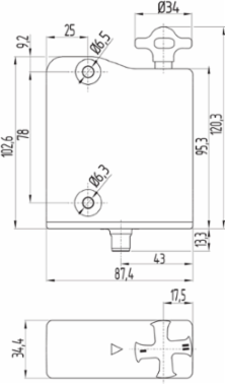

Mechanical data - Dimensions
- Length of sensor
- 120 mm
- Height of sensor
- 35 mm
Width of sensor87.5 mm
Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Electrical data - Magnet control
- Designation, Magnet control
- IN
- Current consumption at 24 V
- 10 mA
- Test pulse duration, maximum
- 5 ms
- Classification ZVEI CB24I, Sink
- C0
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Magnet switch-on time100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
General data - Features
- Power to unlock
- Yes
- Latching
- Yes
- Short circuit detection
- Yes
- Series-wiring
- Yes
- Integral system diagnostics, status
- Yes
- Number of fail-safe digital outputs
- 2
Actuator monitoredYes
Manual releaseYes
Cross-circuit detectionYes
Safety functionsYes
Number of actuating directions3
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- High
- Frequency band RFID
- 125 kHz
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Duration of risk, maximum
- 200 ms
- Reaction time, switching off safety outputs via safety inputs, maximum
- 1.5 ms
CodingIndividual coding, multiple teaching
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight550 g
Reaction time, switching off safety outputs via actuator, maximum100 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Voltage drop U
- 2 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
- Test pulse interval, typical
- 1000 ms
- Classification ZVEI CB24I, Source
- C2
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.25 A
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum0.5 ms
Classification ZVEI CB24I, SinkC1 | C2
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 5.20 x 10⁻¹⁰ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value4.50 x 10⁻⁵
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP69 | IP66
- Storage and transport temperature, minimum
- -10 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 150 Hz, amplitude 0.35 mm
- Protection class
- III
Ambient temperature+0 ... +60 °C
Storage and transport temperature, maximum+90 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole, A-coded
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m
Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Switching distances according EN IEC 60947-5-3
- Switch distance, typical
- 2 mm
- Assured switching distance "OFF" S
- 20 mm
Assured switching distance "ON" S1 mm
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Angular misalignment between solenoid interlock and actuator, maximum
- 2 °
- Holding force F
- 1,500 N
- Latching force, adjustable, position 2
- 50 N
- Tightening torque of the fixing screws, minimum
- 6 Nm
Note (Mechanical life)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Holding force F1,150 N
Latching force, adjustable, position 125 N
Type of the fixing screws2x M6
Tightening torque of the fixing screws, maximum7 Nm
Accessory
- Recommendation (actuator)
- AZ/AZM300-B1
Approvals - Standards
- Certificates
- TÜV | cULus | ECOLAB | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
