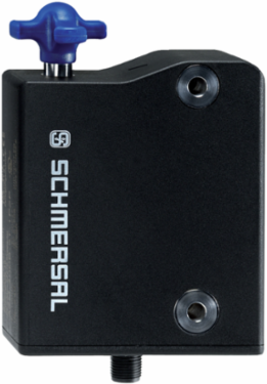

Schmersal 103001424 AZM300 Solenoid Interlock, 120 mm Length, 1,150 N Holding Force, IP 69

MPN: 103001424
PPN: SCM-103001424

$908.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM300 Solenoid Interlock, 120 mm Length, 1,150 N Holding Force, IP 69

Features

Universal coding with RFID technology
Connector M12, 8-pole
Power to lock
Actuator monitored
serial diagnostic output
hygienic design
Protection class IP 69
Suitable for mounting to profile systems
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation
Compact design
3 LEDs to show operating conditions
Suitable for hinged and sliding guards
Series-wiring
Manual release

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputs	X1 and X2
Current consumption at 24 V	5 mA
Test pulse interval, minimum	100 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Electrical data - Serial diagnostic SD

Designation, Serial diagnostic SD	OUT
Design of control elements	short-circuit proof, p-type

Operation current	150 mA
Wiring capacitance	50 nF

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption with magnet ON, average	200 mA
Rated operating voltage	24 VDC
External wire and device fuse rating	2 A gG
Switching frequency, maximum	0.5 Hz

No-load supply current I	100 mA
Current consumption with magnet ON, peak	350 mA / 200 ms
Required rated short-circuit current	100 A
Time to readiness, maximum	5,000 ms

Note

Note (General)

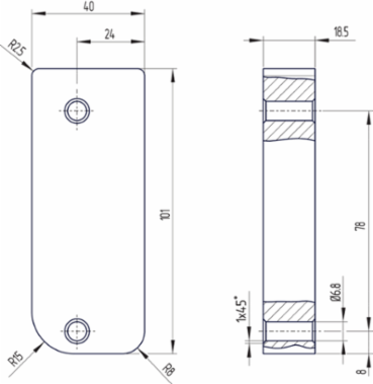

For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. | For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

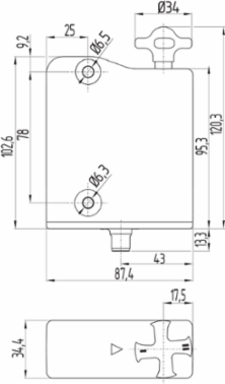

Mechanical data - Dimensions

Length of sensor	120 mm
Height of sensor	35 mm

Width of sensor	87.5 mm

Pin assignment

PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	OUT serial diagnostic output
PIN 7	Y2 Safety output 2

PIN 2	X1 Safety input 1
PIN 4	Y1 Safety output 1
PIN 6	X2 Safety input 2
PIN 8	IN serial diagnostic input

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Electrical data - Magnet control

Designation, Magnet control	IN
Magnet switch-on time	100 %
Test pulse interval, minimum	40 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	5 ms
Classification ZVEI CB24I, Sink	C0

General data - Features

Power to lock	Yes
Serial diagnostics	Yes
Manual release	Yes
Cross-circuit detection	Yes
Safety functions	Yes
Number of actuating directions	3

Actuator monitored	Yes
Latching	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral system diagnostics, status	Yes
Number of fail-safe digital outputs	2

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	Low
Frequency band RFID	125 kHz
Enclosure material	Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Duration of risk, maximum	200 ms
Reaction time, switching off safety outputs via safety inputs, maximum	1.5 ms

Coding	Universal coding
Working principle	RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	600 g
Reaction time, switching off safety outputs via actuator, maximum	100 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Voltage drop U	2 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C2

Design of control elements	short-circuit proof, p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	0.5 ms
Classification ZVEI CB24I, Sink	C1 \| C2

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	5.20 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	4.50 x 10⁻⁵
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP69 \| IP66
Storage and transport temperature, minimum	-10 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm
Protection class	III

Ambient temperature	+0 ... +60 °C
Storage and transport temperature, maximum	+90 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Connector M12, 8-pole, A-coded
Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current

Length of sensor chain, maximum	200 m

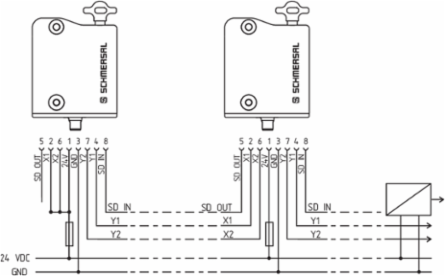

Note (series-wiring)	Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Mechanical data - Switching distances according EN IEC 60947-5-3

Switch distance, typical	2 mm
Assured switching distance "OFF" S	20 mm

Assured switching distance "ON" S	1 mm

Mechanical data

Mechanical life, minimum	1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum	2 °
Holding force F	1,500 N
Latching force, adjustable, position 2	50 N
Tightening torque of the fixing screws, minimum	6 Nm

Note (Mechanical life)	When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Holding force F	1,150 N
Latching force, adjustable, position 1	25 N
Type of the fixing screws	2x M6
Tightening torque of the fixing screws, maximum	7 Nm
