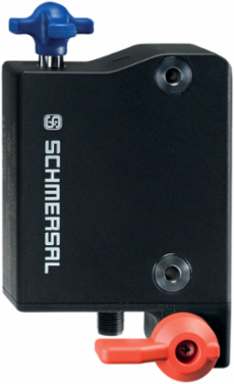

Schmersal 103006862 AZM300 Solenoid Interlock with RFID Technology, IP67, 24 VDC, 1.5 ms Reaction Time

  • MPN: 103006862
  • PPN: SCM-103006862

CAD

$1128.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

AZM300 Solenoid Interlock with RFID Technology, IP67, 24 VDC, 1.5 ms Reaction Time

Features

  • Universal coding with RFID technology
  • Connector M12, 8-pole
  • Power to unlock
  • Actuator monitored
  • Diagnostic output
  • Emergency exit
  • hygienic design
  • Protection class IP 69
  • Suitable for mounting to profile systems
  • Thermoplastic enclosure
  • RFID-technology for needs-based protection against tampering
  • 3 different directions of actuation
  • Compact design
  • 3 LEDs to show operating conditions
  • Suitable for hinged and sliding guards
  • Series-wiring

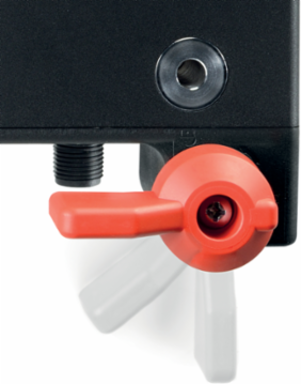

  • Manual release

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputsX1 and X2
Current consumption at 24 V5 mA
Test pulse interval, minimum100 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1

Electrical data

Operating voltage24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption with magnet ON, average200 mA
Rated operating voltage24 VDC
External wire and device fuse rating2 A gG
Switching frequency, maximum0.5 Hz
No-load supply current I100 mA
Current consumption with magnet ON, peak350 mA / 200 ms
Required rated short-circuit current100 A
Time to readiness, maximum5,000 ms

Note

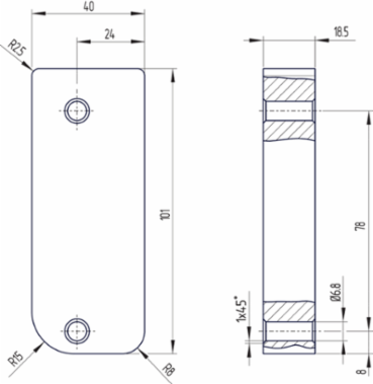

Note (General)For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. | For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

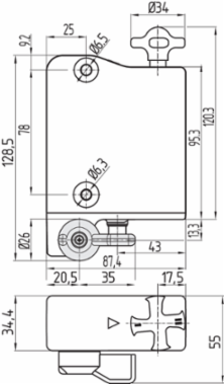

Mechanical data - Dimensions

Length of sensor146 mm
Height of sensor55 mm
Width of sensor87.5 mm

Pin assignment

PIN 1A1 Supply voltage UB
PIN 3A2 GND
PIN 5OUT Diagnostic output
PIN 7Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control

Ambient conditions - Insulation values

Rated insulation voltage U32 VDC
Overvoltage categoryIII
Rated impulse withstand voltage U0.8 kV
Degree of pollution3

Scope of delivery

Scope of deliveryActuator must be ordered separately.

Electrical data - Magnet control

Designation, Magnet controlIN
Current consumption at 24 V10 mA
Test pulse duration, maximum5 ms
Classification ZVEI CB24I, SinkC0
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Magnet switch-on time100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3

General data - Features

Power to unlockYes
LatchingYes
Short circuit detectionYes
Series-wiringYes
Integral system diagnostics, statusYes
Number of fail-safe digital outputs2
Actuator monitoredYes
Emergency exitYes
Cross-circuit detectionYes
Safety functionsYes
Number of actuating directions3

General data

StandardsEN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
Coding level according to EN ISO 14119Low
Frequency band RFID125 kHz
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Duration of risk, maximum200 ms
Reaction time, switching off safety outputs via safety inputs, maximum1.5 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight610 g
Reaction time, switching off safety outputs via actuator, maximum100 ms

Safety classification

StandardsEN ISO 13849-1 | EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputsY1 and Y2
Voltage drop U2 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC2
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.25 A
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum0.5 ms
Classification ZVEI CB24I, SinkC1 | C2

Safety classification - Interlocking function

Performance Level, up toe
PFH value5.20 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in3
Category4
PFD value4.50 x 10⁻⁵
Mission time20 Year(s)

Ambient conditions

Degree of protectionIP67 | IP69 | IP66
Storage and transport temperature, minimum-10 °C
Relative humidity, maximum93 %
Resistance to vibrations10 … 150 Hz, amplitude 0.35 mm
Protection classIII
Ambient temperature+0 ... +60 °C
Storage and transport temperature, maximum+90 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m

Mechanical data - Connection technique

TerminationConnector M12, 8-pole, A-coded
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m

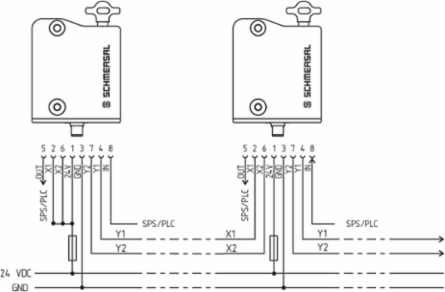

Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Electrical data - Diagnostic outputs

Designation, Diagnostic outputsOUT
Voltage drop U2 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC

Mechanical data - Switching distances according EN IEC 60947-5-3

Switch distance, typical2 mm
Assured switching distance "OFF" S20 mm
Assured switching distance "ON" S1 mm

Mechanical data

Mechanical life, minimum1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum2 °
Holding force F1,500 N
Latching force, adjustable, position 250 N
Tightening torque of the fixing screws, minimum6 Nm
Note (Mechanical life)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Holding force F1,150 N
Latching force, adjustable, position 125 N
Type of the fixing screws2x M6
Tightening torque of the fixing screws, maximum7 Nm

Accessory

Recommendation (actuator)AZ/AZM300-B1

Approvals - Standards

CertificatesTÜV | cULus | ECOLAB | FCC | IC

Status indication

Note (LED switching conditions display)Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
