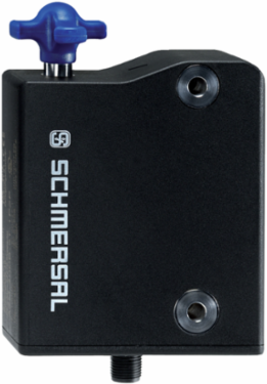

RFID Solenoid Interlock Safety Switch with IP 69 and 1,500 N Holding Force
Schmersal

Schmersal 103005902 RFID Solenoid Interlock Safety Switch with IP 69 and 1,500 N Holding Force

  • MPN: 103005902
  • PPN: SCM-103005902

CAD

$1253.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

RFID Solenoid Interlock Safety Switch with IP 69 and 1,500 N Holding Force

Features

  • Thermoplastic enclosure
  • Universal coding with RFID technology
  • Suitable for hinged and sliding guards
  • 3 different directions of actuation
  • Actuator monitored
  • Power to lock
  • Magnet supply through the AS-Interface
  • hygienic design
  • Protection class IP 69
  • Solenoid interlock with integrated AS-i Safety Interface
  • Universal repeatedly teachable or individual coding because of the RFID technology
  • I-variants with coding level HIGH to ISO 14119
  • 2 integrated snap-in stages

Documentation & Downloads

Specifications

Electrical data

Time to readiness, maximum
5,000 ms

Electrical data - AS-Interface specification

AS-i Specification
Safety-Slave
AS-i Profile
S-7.B.F.E
AS-i, ID-Code
0xB
AS-i, ID-Code2
0xE
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Outputs, DO 1
No Function
AS-i Outputs, DO 3
No Function
AS-i Parameter bits, P1
Solenoid interlock locked
AS-i Parameter bits, P3
Internal device error (FID)
AS-i Input module address
0
AS-i VersionV 3.0
AS-i, IO-Code0x7
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0Solenoid control
AS-i Outputs, DO 2No Function
AS-i Parameter bits, P0Safety guard closed and can be locked
AS-i Parameter bits, P2Auxiliary voltage in
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF) | FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device

Note

Note (General)
For doors that are flush with the door frame, the optional mounting plate MP-AZ/AZM300-1 can be used. | For glass and Makrolon doors, the optional mounting kit MS-AZ/AZM300-B1-1 can be used. | As long as the actuating unit remains inserted in the solenoid interlock, the unlocked safety guard can be relocked. In this case, the safety outputs are re-enabled, so that the safety guard must not be opened.

Mechanical data - Dimensions

Length of sensor
120 mm
Height of sensor
35 mm
Width of sensor87.5 mm

Pin assignment

PIN 1
AS-Interface +
PIN 3
AS-Interface -
PIN 2Aux - (P)
PIN 4Aux + (P)

Ambient conditions - Insulation values

Rated insulation voltage U
32 VDC
Overvoltage category
III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3

Scope of delivery

Scope of delivery
Actuator must be ordered separately.

Electrical data - Magnet control

Magnet switch-on time
100 %

General data - Features

Power to lock
Yes
Latching
Yes
Safety functions
Yes
Number of actuating directions
3
Actuator monitoredYes
Manual releaseYes
Integral system diagnostics, statusYes

General data

Standards
EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
Coding level according to EN ISO 14119
Low
Frequency band RFID
125 kHz
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum
120 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight600 g
Duration of risk, maximum200 ms

Safety classification

Standards
EN ISO 13849-1 | EN IEC 61508

Electrical data - AS Interface

Rated operating voltage
26.5 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum200 mA

Safety classification - Interlocking function

Performance Level, up to
e
PFH value
4.00 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in
3
Category4
PFD value7.00 x 10⁻⁵
Mission time20 Year(s)

Ambient conditions

Degree of protection
IP67 | IP69 | IP66
Storage and transport temperature, minimum
-10 °C
Relative humidity, maximum
93 %
Resistance to vibrations
10 … 150 Hz, amplitude 0.35 mm
Protection class
III
Ambient temperature+0 ... +60 °C
Storage and transport temperature, maximum+90 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m

Mechanical data - Connection technique

Termination
Connector plug M12, 4-pole, (A-coding)

Mechanical data - Switching distances according EN IEC 60947-5-3

Switch distance, typical
2 mm
Assured switching distance "OFF" S
20 mm
Assured switching distance "ON" S1 mm

Mechanical data

Mechanical life, minimum
1,000,000 Operations
Angular misalignment between solenoid interlock and actuator, maximum
2 °
Holding force F
1,500 N
Latching force, adjustable, position 2
50 N
Tightening torque of the fixing screws, minimum
6 Nm
Note (Mechanical life)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Holding force F1,150 N
Latching force, adjustable, position 125 N
Type of the fixing screws2x M6
Tightening torque of the fixing screws, maximum7 Nm

Accessory

Recommendation (actuator)
AZ/AZM300-B1

Approvals - Standards

Certificates
TÜV | cULus | ASi-SaW | ECOLAB | FCC

Status indication

Note (LED switching conditions display)
(1) green/red LED (AS-i duo LED): Supply voltage/communication error/slave address = 0/periphery error detected/device error detected/manipulation protection active | (2) LED yellow: Device condition (Enabling status) | (3) LED red: Internal device error
