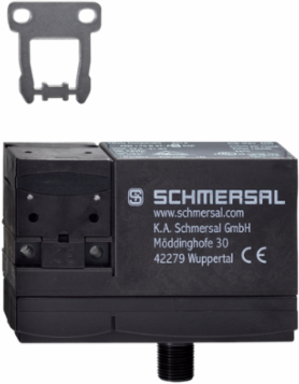

Schmersal 101210414 AZM 170 B ST-AS RAP Solenoid Interlock, 90 mm x 84 mm x 30 mm, 1,000 N Holding Force
- MPN: 101210414
- PPN: SCM-101210414
CAD
$870.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM 170 B ST-AS RAP Solenoid Interlock, 90 mm x 84 mm x 30 mm, 1,000 N Holding Force
Features
- Actuator monitored
- Power to lock
- Solenoid interlock
- Integrated AS-Interface
- Thermoplastic enclosure
- 90 mm x 84 mm x 30 mm
- Double-insulated
- High holding force
Documentation & Downloads
Specifications
Electrical data - AS-Interface specification
| AS-i Specification | Safety-Slave |
|---|---|
| AS-i Profile | S-7.B.F.E |
| AS-i, ID-Code | 0xB |
| AS-i, ID-Code2 | 0xE |
| AS-i Input, Channel 2 | Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 1 | No Function |
| AS-i Outputs, DO 3 | No Function |
| AS-i Parameter bits, P1 | Solenoid interlock locked |
| AS-i Parameter bits, P3 | No function |
| AS-i Input module address | 0 |
| AS-i Version | V 2.1 |
|---|---|
| AS-i, IO-Code | 0x7 |
| AS-i, ID-Code1 | 0xF |
| AS-i Input, Channel 1 | Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Outputs, DO 0 | Solenoid control |
| AS-i Outputs, DO 2 | No Function |
| AS-i Parameter bits, P0 | Safety guard and actuator detected |
| AS-i Parameter bits, P2 | No function |
| Note (AS-i Parameter bits) | Set the parameter outputs to "1111" (0xF) | FID: periphery error |
| Note (AS-i Input module address) | Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |
Note
| Note (General) | Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened. |
|---|

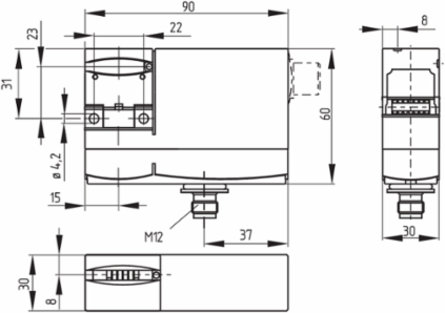

Mechanical data - Dimensions
| Width of sensor | 90 mm |
|---|
| Height of sensor | 75.5 mm |
|---|
Pin assignment
| PIN 1 | AS-i + |
|---|---|
| PIN 3 | AS-Interface - |
| PIN 2 | Aux - (P) |
|---|---|
| PIN 4 | Aux + (P) |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Power to lock | Yes |
|---|---|
| Integral system diagnostics, status | Yes |
| Actuator monitored | Yes |
|---|---|
| Number of actuating directions | 2 |
General data
| Standards | EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508 |
|---|---|
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 100 ms |
| Working principle | electromechanical |
|---|---|
| Gross weight | 310 g |
Safety classification
| Standards | EN IEC 61508 |
|---|---|
| Category | 1 |
| Note (PFH-value) | up to max. 100,000 switching cycles/year |
| Mission time | 20 Year(s) |
| Performance Level, up to | d |
| PFH value | 1.01 x 10⁻⁷ /h |
| Performance Level, up to | c |
|---|---|
| PFH value | 1.16 x 10⁻⁶ /h |
| Safety Integrity Level (SIL), suitable for applications in | 1 |
| Please note: | Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist. |
| Category | 3 |
| Safety Integrity Level (SIL), suitable for applications in | 2 |
Electrical data - AS Interface
| Rated operating voltage | 26.5 ... 31.6 VDC (Protection against polarity reversal) |
|---|
| AS-i Current consumption, maximum | 100 mA |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing | non-icing |
| Ambient temperature | -25 ... +55 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Relative humidity, maximum | 95 % |
| Protection class | II |
Mechanical data - Connection technique
| Termination | Connector plug M12, 4-pole, (A-coding) |
|---|
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Latching force | 30 N |
| Holding force | 1,000 N |
|---|---|
| Actuating speed, maximum | 2 m/s |
Approvals - Standards
| Certificates | TÜV | cULus | ASi-SaW |
|---|
Electrical data - Auxiliary voltage
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| Rated operating voltage | 24 VDC |
| Current consumption | 500 mA |
|---|
Status indication
| Note (LED switching conditions display) | (1) LED green: Supply voltage | (2) red LED: Communication error / Slave address = 0 | (3) LED yellow : Enabling status |
|---|
