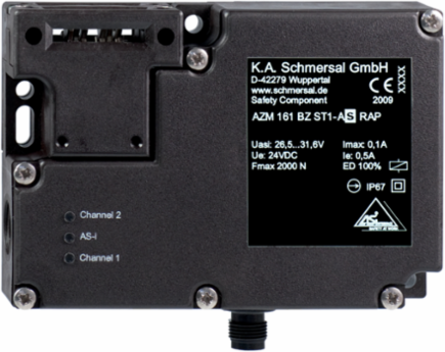

Schmersal 101209095 Electromechanical Solenoid Interlock 2000N Holding Force, 130mm x 90mm x 30mm
Schmersal 101209095 Electromechanical Solenoid Interlock 2000N Holding Force, 130mm x 90mm x 30mm
- MPN: 101209095
- PPN: SCM-101209095
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$816.09/ EA
Description
Electromechanical Solenoid Interlock 2000N Holding Force, 130mm x 90mm x 30mm
Features
- Solenoid supply 24 VDC (Aux)
- Actuator monitored
- Manual release
- Solenoid interlock
- Thermoplastic enclosure
- High holding force 2000
- 130 mm x 90 mm x 30 mm
- Interlock with protection against incorrect locking.
- Double-insulated
- Long life
- Integrated AS-Interface
Specifications
Electrical data
- Switching frequency
- 1,000 /h
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-7.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Outputs, DO 1
- No Function
- AS-i Outputs, DO 3
- No Function
- AS-i Parameter bits, P1
- Solenoid interlock locked
- AS-i Parameter bits, P3
- Error message - locking/unlocking of the solenoid interlock blocked
- AS-i Input module address
- 0
AS-i VersionV 2.1
AS-i, IO-Code0x7
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0Solenoid control
AS-i Outputs, DO 2No Function
AS-i Parameter bits, P0Actuator detected
AS-i Parameter bits, P2Magnet voltage in tolerance range
Note (AS-i Parameter bits)Set the parameter outputs to "1111" (0xF) | FID: periphery error
Note (AS-i Input module address)Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Note
- Note (General)
- Interlocks with the power to lock principle may only be used in special cases after a thorough evaluation of the accident risk, since the guarding device can immediately be opened on failure of the electrical power supply or when the main switch is opened.

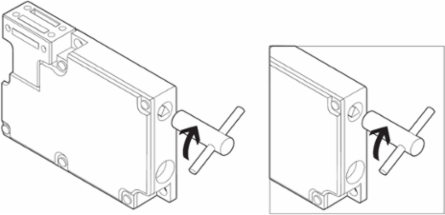

Note (Manual release)For maintenance, installation, etc. | For manual release using M5 triangular key, available as accessory

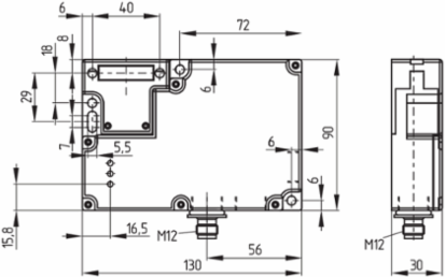

Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 90 mm
Width of sensor130 mm
Pin assignment
- PIN 1
- AS-i +
- PIN 3
- AS-Interface -
PIN 2Aux - (P)
PIN 4Aux + (P)
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Power to unlock
- Yes
- Manual release
- Yes
- Number of actuating directions
- 3
Actuator monitoredYes
Integral system diagnostics, statusYes
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 61508
- Working principle
- electromechanical
- Gross weight
- 450 g
Coding level according to EN ISO 14119Low
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Reaction time, maximum100 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 1
- Note (PFH-value)
- up to max. 100,000 switching cycles/year
- Mission time
- 20 Year(s)
- Performance Level, up to
- d
- PFH value
- 1.01 x 10⁻⁷ /h
Performance Level, up toc
PFH value1.14 x 10⁻⁶ /h
Safety Integrity Level (SIL), suitable for applications in1
Please note:Einsetzbar wenn ein Fehlerausschluss für eine gefahrbringende Beschädigung der 1-kanaligen Mechanik zulässig ist und ein ausreichender Manipulationsschutz gewährleistet ist.
Category3
Safety Integrity Level (SIL), suitable for applications in2
Electrical data - AS Interface
- Rated operating voltage
- 26.5 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum100 mA
Other data
- Note (applications)
- sliding safety guard | removable guard | hinged safety guard
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, minimum
- 30 %
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 Hz ... 150 Hz, amplitude 0.35 mm
Protection classII
Mechanical data - Connection technique
- Termination
- Connector plug M12, 4-pole, (A-coding)
Connector positionBottom
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Holding force F
- 2,000 N
- Latching force
- 30 N
- Mounting
- Screws
Actuating play in direction of actuation5.5 mm
Holding force F2,600 N
Actuating speed, maximum2 m/s
Type of the fixing screws3x M6
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW
Electrical data - Auxiliary voltage
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
Current consumption500 mA
Status indication
- Note (LED switching conditions display)
- (1) LED yellow: Channel 2 / AS-i SaW Bit 2.3 | (2) LED green/red (AS-i duo LED): Supply voltage / communication error / slave address = 0 / periphery error detected | (3) LED yellow: Channel 1 / AS-i SaW Bit 0.1
