Schmersal 103008177 AZM300Z Safety Switch with RFID, 146 mm Length, IP69 Protection
- MPN: 103008177
- PPN: SCM-103008177
CAD
$1084.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

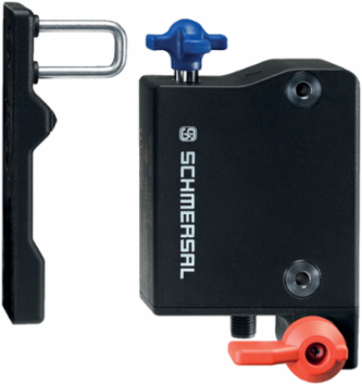

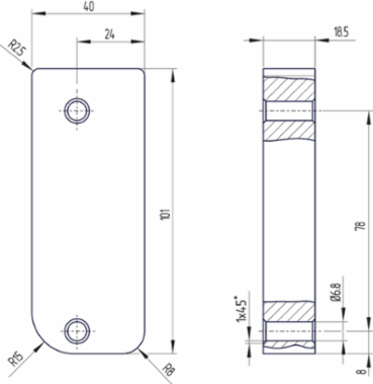

AZM300Z Safety Switch with RFID, 146 mm Length, IP69 Protection
Features
- Universal coding with RFID technology
- Connector M12, 8-pole
- Power to unlock
- Guard locking monitored
- serial diagnostic output
- Emergency exit
- Hygienic design
- Protection class IP 69
- Suitable for mounting to profile systems
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering

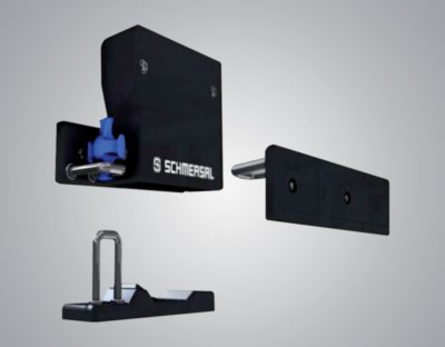

- 3 different directions of actuation
- Compact design
- 3 LEDs to show operating conditions
- Suitable for hinged and sliding guards
- Series-wiring

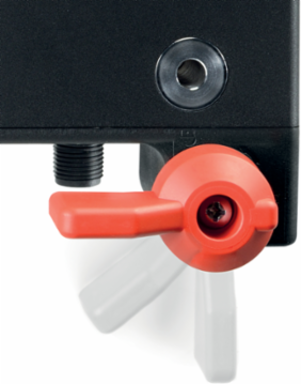

- Manual release
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Versions
- short-circuit proof, p-type
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
- Test pulse interval, typical
- 1000 ms
- Classification ZVEI CB24I, Sink
- C1 | C2
Voltage drop U4 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Test pulse duration, maximum0.5 ms
Classification ZVEI CB24I, SourceC2

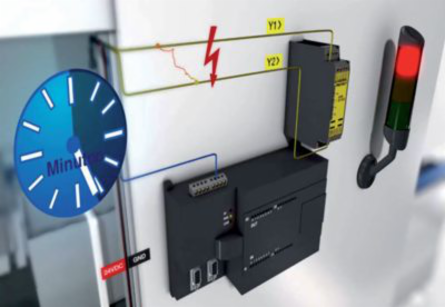

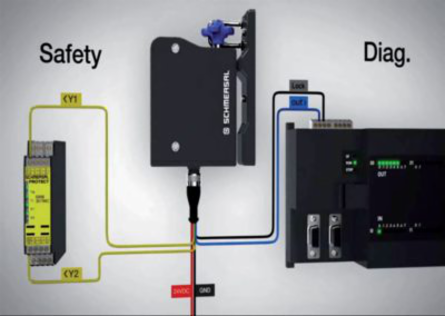

Electrical data - Serial diagnostic SD
- Operation current
- 150 mA
Wiring capacity50 nF
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 61508
Electrical data
- Operating voltage, minimum
- 20.4 VDC
- Notes (Power supply, general)
- stabilised PELV power supply
- Current consumption with solenoid ON, average
- 200 mA
- Required rated short-circuit current to EN 60947-5-1
- 100 A
- Switching frequency, maximum
- 0.5 Hz
Operating voltage, maximum26.4 VDC
No-load supply current I100 mA
Current consumption with solenoid ON, peak350 mA / 200 ms
External wiring and device fuse rating2 A gG
Electrical data - Fail-safe digital inputs
- Switching thresholds
- −3 V … 5 V (Low) | 15 V … 30 V (High)
- Test pulse duration, maximum
- 1 ms
- Classification ZVEI CB24I, Sink
- C1
Current consumption at 24V5 mA
Test pulse interval, minimum100 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Safety appraisal - Interlocking
- Performance level, up to
- e
- PFH-value
- 5.20 x 10⁻¹⁰ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Control category4
PFD value4.50 x 10⁻⁵
Mission Time20 Year(s)

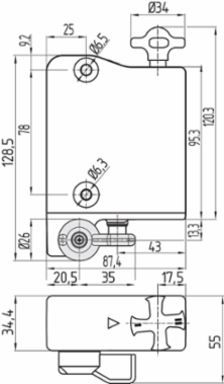

Mechanical data - Dimensions
- Length of sensor
- 146 mm
- Height of sensor
- 55 mm
Width of sensor87.5 mm
Electrical data - Solenoid control
- Switching thresholds
- -3 V … 5 V (Low) | 15 V … 30 V (High)
- Test pulse duration, maximum
- 5 ms
- Classification ZVEI CB24I, Sink
- C0
Duty cycle solenoid100 %
Test pulse interval, minimum40 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT serial diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN serial diagnostic input
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to IEC/EN 60664-13
General data - Features
- Power to unlock
- Yes
- Serial diagnostics
- Yes
- Emergency exit
- Yes
- Short-circuit recognition
- Yes
- Safety functions
- Yes
- Number of fail-safe digital outputs
- 2
Guard locking monitoredYes
LatchingYes
Short circuit detectionYes

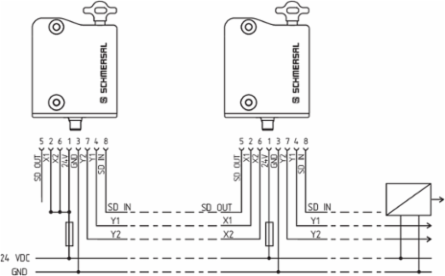

Series-wiringYes
Integral System Diagnostics, statusYes
General data
- Standards
- IEC 61508 | IEC 60947-5-3 | EN ISO 13849-1 | EN ISO 14119
- Coding level according to ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Time to readiness, maximum
- 5,000 ms
- Response time safety outputs in case of switch-off by actuator, maximum
- 100 ms
general informationUniversal coding
Active principleRFID
Transmit power, maximum-6 dB/m
Gross weight650 g
Duration of risk, maximum200 ms
Response time safety outputs in case of switch-off by safety inputs, maximum1.5 ms
Ambient conditions
- Degree of protection
- IP66 to EN 60529 | IP67 to EN 60529 | IP69 to EN 60529
- Ambient temperature, maximum
- +60 °C
- Storage and transport temperature, maximum
- +90 °C
- Note (Relative humidity)
- non-condensing | non-icing
- Restistance to shock
- 30 g / 11 ms
- Zulässige Aufstellhöhe über NN, maximum
- 2,000 m
Ambient temperature, minimum+0 °C
Storage and transport temperature, minimum-10 °C
Relative humidity, maximum93 %
Resistance to vibrations to EN 60068-2-610 … 150 Hz, amplitude 0.35 mm
Protection ratingIII
Electrical data - Diagnostic output
- Versions
- short-circuit proof, p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U4 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Mechanical data - Connection technique
- Terminal Connector
- Connector M12, 8-pole, A-coded
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum200 m

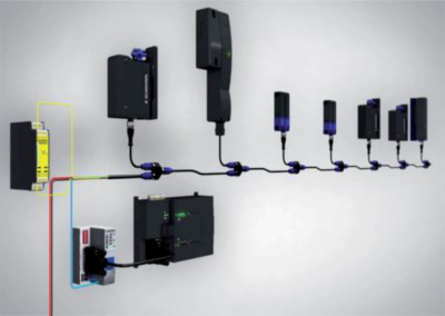

Note (series connection of the sensors)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Mechanical data - Switching distances according IEC 60947-5-3
- Switch distance
- 2 mm
- Ensured switch distance "OFF" S
- 20 mm
Ensured switch distance "ON" S1 mm
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations

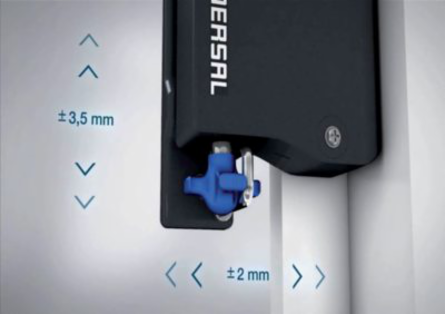

- Angular offset between interlocking device and actuator, maximum
- 2 °
- Clamping force, maximum F
- 1,500 N

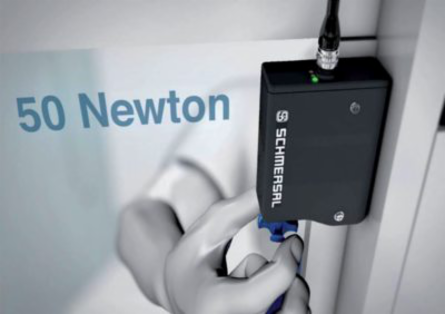

- Latching force, adjustable, position 2
- 50 N
- Tightening torque of the fixing screws, minimum
- 6 Nm
Note (Mechanical lifetime)When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Clamping force in accordance with EN ISO 14119 F1,150 N
Latching force, adjustable, position 125 N
Type of the fixing screws2x M6
Tightening torque for the fixing screws, maximum7 Nm
Accessory
- Recommendation (actuator)
- AZ/AZM300-B1
Approval - Standards
- Certificates
- TÜV | cULus | ECOLAB | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
