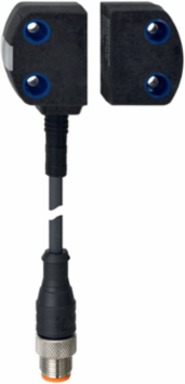

Schmersal 103013285 RFID Safety Sensor with IP65/IP67 Protection, 2 Digital Outputs, 39.2 mm Width
- MPN: 103013285
- PPN: SCM-103013285
CAD
$315.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RFID Safety Sensor with IP65/IP67 Protection, 2 Digital Outputs, 39.2 mm Width
Features
- Simple mounting without additional angle
- Universal coding with RFID technology
- Frontal and lateral actuation enabled
- RFID-technology for needs-based protection against tampering
- 8- pole cable connector M12
- Thermoplastic enclosure
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
| Designation, Safety inputs | X1 and X2 |
|---|---|
| Test pulse duration, maximum | 1 ms |
| Classification ZVEI CB24I, Sink | C1 |
| Current consumption of the safety inputs | 5 mA |
|---|---|
| Test pulse interval, minimum | 100 ms |
| Classification ZVEI CB24I, Source | C1 | C2 | C3 |
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| No-load supply current I | 35 mA |
| Operating current | 600 mA |
| Time to readiness, maximum | 2,000 ms |
| Operating current, minimum | 0.5 mA |
|---|---|
| Rated operating voltage | 24 VDC |
| Required rated short-circuit current | 100 A |
| Switching frequency, maximum | 1 Hz |

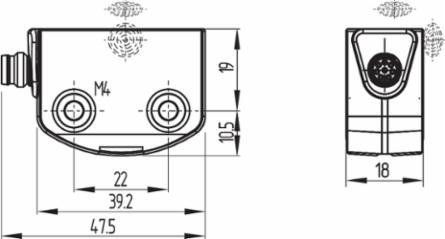

Mechanical data - Dimensions
| Length of sensor | 29.5 mm |
|---|---|
| Height of sensor | 18 mm |
| Width of sensor | 39.2 mm |
|---|

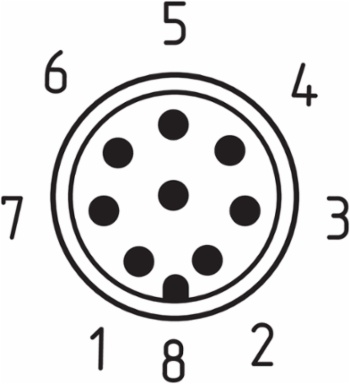

Pin assignment
| PIN 1 | A1 Supply voltage UB |
|---|---|
| PIN 3 | A2 GND |
| PIN 5 | OUT Diagnostic output |
| PIN 7 | Y2 Safety output 2 |
| PIN 2 | X1 Safety input 1 |
|---|---|
| PIN 4 | Y1 Safety output 1 |
| PIN 6 | X2 Safety input 2 |
| PIN 8 | without function |
Ambient conditions - Insulation values
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
| Overvoltage category | III |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Short circuit detection | Yes |
|---|---|
| Series-wiring | Yes |
| Number of poles | 8 |
| Cross-circuit detection | Yes |
|---|---|
| Safety functions | Yes |
| Number of fail-safe digital outputs | 2 |
General data
| Standards | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Frequency band RFID | 125 kHz |
| Housing construction form | Block |
| Enclosure material | Plastic, thermoplastic, self-extinguishing |
| Gross weight | 77 g |
| Duration of risk, maximum | 200 ms |
| Coding | Universal coding |
|---|---|
| Working principle | RFID |
| Transmitter output RFID, maximum | -6 dB/m |
| Installation conditions (mechanical) | not flush |
| Active area | Glass-fibre, thermoplastic |
| Reaction time, maximum | 100 ms |
| Reaction time, switching off safety outputs via actuator, maximum | 100 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|---|
| Category | 4 |
| PFD value | 1.20 x 10⁻⁴ |
| Mission time | 20 Year(s) |
| Performance Level, up to | e |
|---|---|
| PFH value | 6.80 x 10⁻¹⁰ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - Safety digital outputs
| Designation, Safety outputs | Y1 and Y2 |
|---|---|
| Output current, (fail-safe output), maximum | 0.25 A |
| Voltage drop U | 1 V |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Test pulse interval, typical | 1000 ms |
| Classification ZVEI CB24I, Source | C2 |
| Rated operating current (safety outputs) | 250 mA |
|---|---|
| Design of control elements | short-circuit proof, p-type |
| Leakage current I | 0.5 mA |
| Current, Utilisation category DC-12 | 0.25 A |
| Current, Utilisation category DC-13 | 0.25 A |
| Test pulse duration, maximum | 1 ms |
| Classification ZVEI CB24I, Sink | C1 | C2 |
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Ambient temperature | -25 ... +65 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Connector M12, 8-pole, A-coded |
|---|---|
| Note (series-wiring) | Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD |
| Note (length of the sensor chain) | Cable length and cross-section change the voltage drop dependiing on the output current |
|---|
Electrical data - Diagnostic outputs
| Designation, Diagnostic outputs | OUT |
|---|---|
| Voltage drop U | 2 V |
| Current, Utilisation category DC-12 | 0.05 A |
| Current, Utilisation category DC-13 | 0.05 A |
| Operating current | 50 mA |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Typical switching distance, frontal | 12 mm |
|---|---|
| Assured switching distance "ON", frontal | 10 mm |
| Assured switching distance "ON", lateral | 6 mm |
| Note (S | The specifications of the safety switching distance S | refer to a temperature range of | -10 °C ... +60 °C. For a temperature range of -25 °C ... +65 °C, S | is reduced by 2 mm. |
| Typical switching distance, lateral | 9 mm |
|---|---|
| Assured switching distance "OFF", frontal | 18 mm |
| Assured switching distance "OFF", lateral | 15 mm |
| Note (switching distance) | Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range. |
Mechanical data
| Actuating panels | lateral | front side |
|---|---|
| Hysteresis (Switching distance), maximum | 2 mm |
| Mounting | A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws. |
| Tightening torque of the fixing screws, maximum | 0.8 Nm |
| Active area | lateral | front |
|---|---|
| Repeat accuracy R | 0.5 mm |
| Type of the fixing screws | 2x M4 |
Accessory
| Recommendation (actuator) | RST16-1 | RST-U-2 | RST260-1 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | FCC | IC | UKCA |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Interfering radiation | IEC 61000-6-4 |
|---|
| EMC rating | IEC 60947-3 |
|---|
Status indication
| Note (LED switching conditions display) | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault |
|---|
