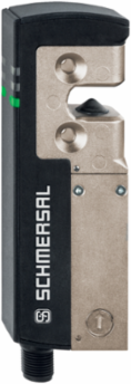

Schmersal 103034188 AZM40 Solenoid Interlock with RFID Technology, 119.5 mm x 40 mm x 20 mm

MPN: 103034188
PPN: SCM-103034188

$1047.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

AZM40 Solenoid Interlock with RFID Technology, 119.5 mm x 40 mm x 20 mm

Features

Compact, flat design
119,5 mm x 40 mm x 20 mm
High holding force 2000
Latching force 40 N
RFID-technology for needs-based protection against tampering
Individually coded version with coding level "High" according to ISO 14119
Only one version for hinged and sliding doors
Actuator can approach interlock continuously within a 180 degree angle.
Symmetrical mounting, can be bolted on either side

Documentation & Downloads

Specifications

Electrical data - Safety digital inputs

Designation, Safety inputs	X1 and X2
Current consumption at 24 V	5 mA
Test pulse interval, minimum	100 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3

Switching thresholds	−3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	1 ms
Classification ZVEI CB24I, Sink	C1

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Rated operating voltage	24 VDC
Required rated short-circuit current	100 A
Time to readiness, maximum	4,000 ms
Current consumption magnet at switching moment, peak	600 mA / 100ms

No-load supply current I	100 mA
Operating current	1,200 mA
External wire and device fuse rating	2 A gG
Switching frequency, maximum	0.25 Hz

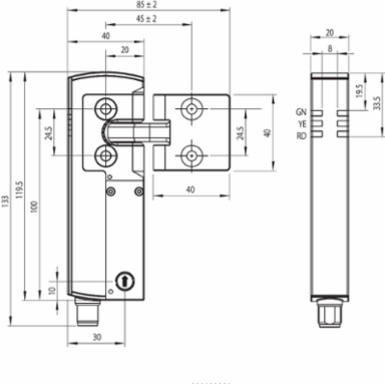

Mechanical data - Dimensions

Length of sensor	119.5 mm
Height of sensor	20 mm

Width of sensor	40 mm

Pin assignment

PIN 1	A1 Supply voltage UB
PIN 3	A2 GND
PIN 5	OUT Diagnostic output
PIN 7	Y2 Safety output 2

PIN 2	X1 Safety input 1
PIN 4	Y1 Safety output 1
PIN 6	X2 Safety input 2
PIN 8	IN Solenoid control

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Electrical data - Magnet control

Designation, Magnet control	IN
Magnet switch-on time	100 %
Test pulse interval, minimum	40 ms
Classification ZVEI CB24I, Source	C1 \| C2 \| C3
Current consumption at 24V, maximum	15 mA

Switching thresholds	-3 V … 5 V (Low) \| 15 V … 30 V (High)
Test pulse duration, maximum	5 ms
Classification ZVEI CB24I, Sink	C0
Current consumption at 24V, minimum	10 mA

General data - Features

Solenoid interlock monitored	Yes
Manual release	Yes
Cross-circuit detection	Yes
Safety functions	Yes
Number of safety contacts	2

Latching	Yes
Short circuit detection	Yes
Series-wiring	Yes
Integral system diagnostics, status	Yes

General data

Standards	EN ISO 13849-1 \| EN ISO 14119 \| EN IEC 60947-5-3 \| EN IEC 61508
Coding level according to EN ISO 14119	High
Frequency band RFID	125 kHz
Enclosure material	Light alloy die cast and plastic (glass-fibre reinforced thermoplastic, self-extinguishing)
Reaction time, maximum	100 ms
Reaction time, switching off safety outputs via safety inputs, maximum	1.5 ms

Coding	Individual coding
Working principle	RFID
Transmitter output RFID, maximum	-6 dB/m
Gross weight	270 g
Duration of risk, maximum	200 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 61508

Electrical data - Safety digital outputs

Designation, Safety outputs	Y1 and Y2
Design of control elements	short-circuit proof, p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A
Test pulse duration, maximum	0.5 ms
Classification ZVEI CB24I, Sink	C1 \| C2

Rated operating current (safety outputs)	250 mA
Voltage drop U	2 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC
Test pulse interval, typical	1000 ms
Classification ZVEI CB24I, Source	C2

Safety classification - Interlocking function

Performance Level, up to	e
PFH value	1.10 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	3

Category	4
PFD value	8.90 x 10⁻⁵
Mission time	20 Year(s)

Ambient conditions

Degree of protection	IP67 \| IP66
Storage and transport temperature, minimum	-40 °C
Relative humidity, maximum	93 %
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Protection class	III

Ambient temperature	+0 ... +55 °C
Storage and transport temperature, maximum	+85 °C
Note (Relative humidity)	non-condensing \| non-icing
Restistance to shock	30 g / 11 ms
Permissible installation altitude above sea level, maximum	2,000 m

Mechanical data - Connection technique

Termination	Connector M12, 8-pole, A-coded
Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current

Length of sensor chain, maximum	30 m

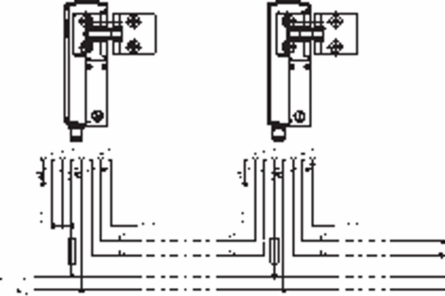

Note (series-wiring)	Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD

Electrical data - Diagnostic outputs

Designation, Diagnostic outputs	OUT
Voltage drop U	2 V
Current, Utilisation category DC-12	0.05 A
Current, Utilisation category DC-13	0.05 A

Design of control elements	short-circuit proof, p-type
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC

Mechanical data - Switching distances according EN IEC 60947-5-3

Assured switching distance "ON" S	1 mm

Assured switching distance "OFF" S	8 mm

Safety classification - Guard locking function

Performance Level, up to	d
PFH value	3.00 x 10⁻⁹ /h
Safety Integrity Level (SIL), suitable for applications in	2

Category	2
PFD value	2.40 x 10⁻⁴
Mission time	20 Year(s)

Mechanical data

Interlocking principle	bistable
Mechanical life, actuator cycles	200,000 Operations
Holding force F	2,600 N
Note (Latch force)	+/- 25%
Mounting	mounting holes countersink
Tightening torque of the fixing screws, minimum	4 Nm

Mechanical life, locking cycles	1,000,000 Operations
Holding force F	2,000 N
Latching force	40 N
Actuating speed, maximum	0.5 m/s
Type of the fixing screws	2x M5
