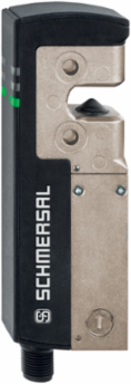

Schmersal 103037335 AZM40Z-I2-ST Solenoid Interlock, 119.5 mm x 40 mm x 20 mm, 2,600 N Holding Force
- MPN: 103037335
- PPN: SCM-103037335
CAD
$978.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
AZM40Z-I2-ST Solenoid Interlock, 119.5 mm x 40 mm x 20 mm, 2,600 N Holding Force
Features
- Compact, flat design
- 119,5 mm x 40 mm x 20 mm
- High holding force 2000
- Latching force 40 N
- RFID-technology for needs-based protection against tampering
- Individually coded version with coding level "High" according to ISO 14119
- Only one version for hinged and sliding doors
- Actuator can approach interlock continuously within a 180 degree angle.
- Symmetrical mounting, can be bolted on either side
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Current consumption at 24 V
- 5 mA
- Test pulse interval, minimum
- 100 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
Switching thresholds−3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
- Time to readiness, maximum
- 4,000 ms
- Current consumption magnet at switching moment, peak
- 600 mA / 100ms
No-load supply current I100 mA
Operating current1,200 mA
External wire and device fuse rating2 A gG
Switching frequency, maximum0.25 Hz

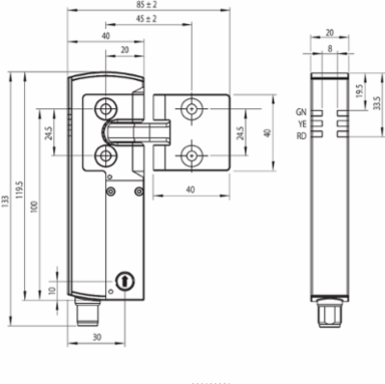

Mechanical data - Dimensions
- Length of sensor
- 119.5 mm
- Height of sensor
- 20 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- A1 Supply voltage UB
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN Solenoid control
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Electrical data - Magnet control
- Designation, Magnet control
- IN
- Magnet switch-on time
- 100 %
- Test pulse interval, minimum
- 40 ms
- Classification ZVEI CB24I, Source
- C1 | C2 | C3
- Current consumption at 24V, maximum
- 15 mA
Switching thresholds-3 V … 5 V (Low) | 15 V … 30 V (High)
Test pulse duration, maximum5 ms
Classification ZVEI CB24I, SinkC0
Current consumption at 24V, minimum10 mA
General data - Features
- Solenoid interlock monitored
- Yes
- Manual release
- Yes
- Cross-circuit detection
- Yes
- Safety functions
- Yes
- Number of safety contacts
- 2
LatchingYes
Short circuit detectionYes

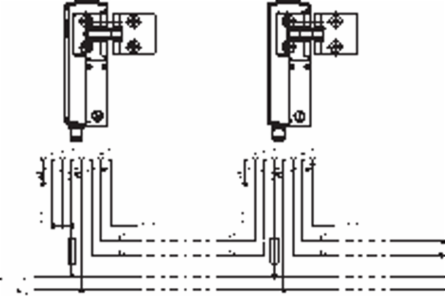

Series-wiringYes
Integral system diagnostics, statusYes
General data
- Standards
- EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- High
- Frequency band RFID
- 125 kHz
- Enclosure material
- Light alloy die cast and plastic (glass-fibre reinforced thermoplastic, self-extinguishing)
- Reaction time, maximum
- 100 ms
- Reaction time, switching off safety outputs via safety inputs, maximum
- 1.5 ms
CodingIndividual coding, multiple teaching
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Gross weight303 g
Duration of risk, maximum200 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Design of control elements
- short-circuit proof, p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
- Test pulse duration, maximum
- 0.5 ms
- Classification ZVEI CB24I, Sink
- C1 | C2
Rated operating current (safety outputs)250 mA
Voltage drop U2 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Test pulse interval, typical1000 ms
Classification ZVEI CB24I, SourceC2
Safety classification - Interlocking function
- Performance Level, up to
- e
- PFH value
- 1.10 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 3
Category4
PFD value8.90 x 10⁻⁵
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Storage and transport temperature, minimum
- -40 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- III
Ambient temperature+0 ... +55 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole, A-coded
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum30 m
Note (series-wiring)Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Design of control elementsshort-circuit proof, p-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 1 mm
Assured switching distance "OFF" S8 mm
Safety classification - Guard locking function
- Performance Level, up to
- d
- PFH value
- 3.00 x 10⁻⁹ /h
- Safety Integrity Level (SIL), suitable for applications in
- 2
Category2
PFD value2.40 x 10⁻⁴
Mission time20 Year(s)
Mechanical data
- Interlocking principle
- bistable
- Mechanical life, actuator cycles
- 200,000 Operations
- Holding force F
- 2,600 N
- Note (Latch force)
- +/- 25%
- Mounting
- mounting holes plain
- Tightening torque of the fixing screws, minimum
- 4 Nm
Mechanical life, locking cycles1,000,000 Operations
Holding force F2,000 N
Latching force40 N
Actuating speed, maximum0.5 m/s
Type of the fixing screws2x M5
Accessory
- Recommendation (actuator)
- AZM40-B1-PH
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC
Status indication
- Note (LED switching conditions display)
- Operating condition: LED green | Error / functional defect: LED red | Supply voltage UB: LED green
