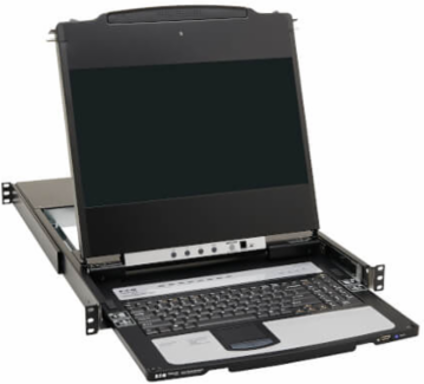

Tripp Lite B030DP0817DIP Console KVM Switch, 8-Port, DisplayPort, 17 in LCD, IP Remote Access, Dual Rail, 1U Rack-Mount, TAA
- MPN: B030DP0817DIP
- UPC: 037332258700
- PPN: TRP-B030-DP08-17DIP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

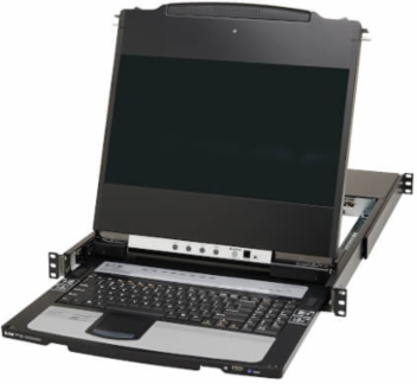

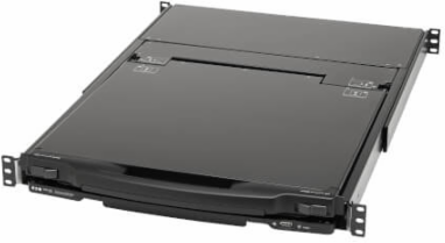

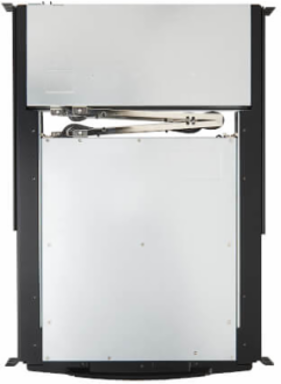

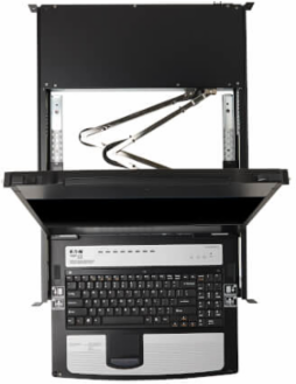

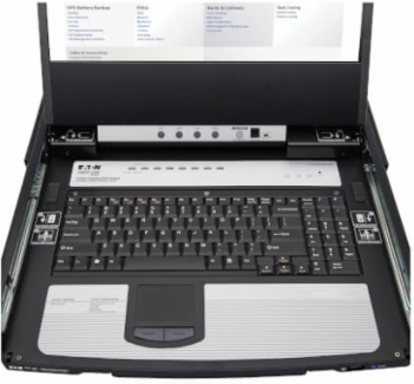

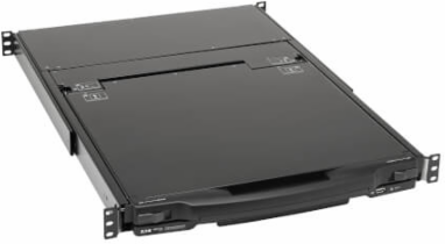

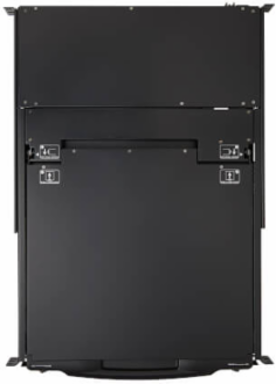

NetDirector 8-Port DisplayPort KVM Switch Console with 17 in. LCD, IP Remote Access, Dual Rail, 1U Rack-Mount, TAA
Features
- 8-port DisplayPort KVM switch console with 17-in LCD, IP remote access, and dual-rail design
- Supports LDAP, LDAPS, MS Active Directory, and RADIUS authentication

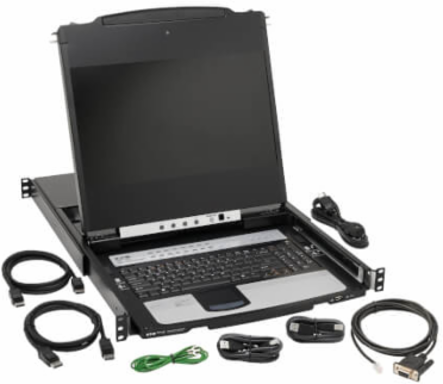

- Includes (2) DisplayPort cables, 6 ft
- Includes (2) USB 2.0 A/B cables, 6 ft
- RJ11 firmware upgrade cable included
- C13 to NEMA 5-15P power cord included
- Grounding wire included
Documentation & Downloads
Specifications
Performance
- Max CPU Ports
- 8
- Network Compatibility
- 1000 Mbps
- HDCP Specification
- 1.4
- Recommended Category Cable
- Cat5e/6
- AC Power Input
- 100-240V / 50/60Hz / 1A
- Power Input Receptacle
- IEC-320-C14
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-80% non-condensing
- PC/Server Connections
- DisplayPort; USB
- Port Selection
- GUI; Hotkey; OSD; Pushbutton
Max Supported Video Resolution1920 x 1080 @60Hz
DisplayPort Specification1.1
Authentication SupportedLDAP; LDAPS; MS Active Directory; RADIUS
Power Consumption38.40W
Input Current1A
USB SpecificationUSB 1.1 (up to 12 Mbps)
Storage Temperature-4° to 140°F (-20° to 60°C)
TechnologyDisplayPort
Port ControlPush Buttons, Hotkeys, OSD, Remote Toolbar
Access TypeRemote
Reference
- Warranty
- 1-year limited warranty
Dimensions
- LCD Monitor Size
- 17 in
- Unit Weight (lb)
- 31
Unit Dimensions (H x W x D, in)1.730 x 18.900 x 26.770
Material
- Color
- Black
MaterialMetal; Plastic
