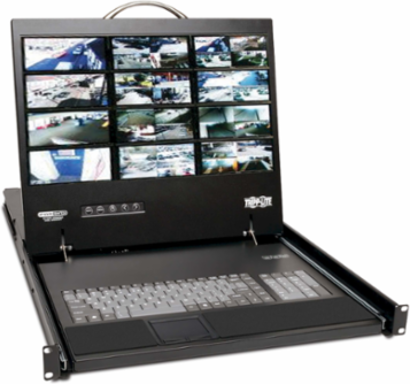

Tripp Lite B070-016-19-IP NetCommander 16-Port Cat5 KVM Switch, 19 Inch LCD, 1U Rack-Mount, IP Remote Access
- MPN: B070-016-19-IP
- UPC: 037332140326
- PPN: TRP-B070-016-19-IP
CAD
$4256.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 16 computers from virtually anywhere with one Cat5 KVM switch with integrated console. This KVM switch with IP remote access is a smart solution for efficient server control. Low-cost Cat5 cables let you locate servers up to 100 ft. away.
Features
- Control computers/servers locally or via LAN, WAN or Internet
- Occupies just 1U of space in a rack-mountable drawer
- Low-cost Cat5 cabling allows longer distances, reduces cable clutter
- 19” LCD screen supports video resolutions up to 1366 x 768
- Simultaneous support for 2 users – 1 local, 1 remote
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
- Fast Virtual Media KVM System patented under Pat. No. US 9,417,720
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
| Ports | 16 |
|---|---|
| Input Current | 120V (1.2A) / 230V (0.7A) |
| Input Frequency | 50/60Hz |
| Number of Users | 2 (1 local, 1 remote) |
| Rackmountable | Yes, 1U |
| Unit Weight | 29 lbs (13.15 kg) |
| Power Input Receptacle | IEC-320-C14 |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Network Speed | 10/100 Mbps |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Certifications | UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH, TAA Compliant |
| Warranty | 1-year limited |
| Power Consumption | 30W (line mode), 5W (standby) |
|---|---|
| Power Input Voltage | 100-240V AC |
| Max Supported Video Resolution | Console: 1366 x 768 @ 60Hz; Remote: 1920 x 1080 @ 60Hz |
| Console Screen Size | 19 in |
| Unit Dimensions | 1.7 x 17.4 x 28.4 in |
| Material of Construction | SECC Steel (Electrogalvanized, Cold rolled, Coil) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| Storage Temperature Range | -40 to 158 F (-40 to 70 C) |
| Computer Connections | PS/2, USB, VGA |
| Authentication Supported | RADIUS; LDAPS |
| Color | Black |
