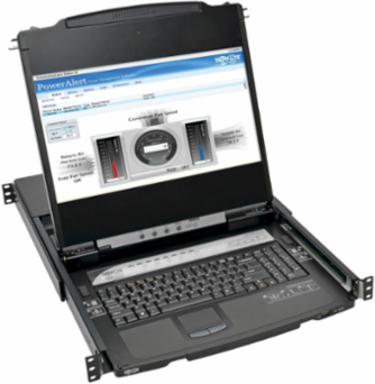

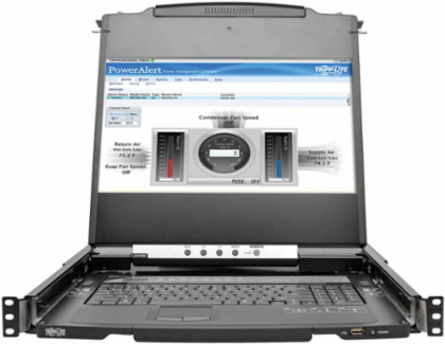

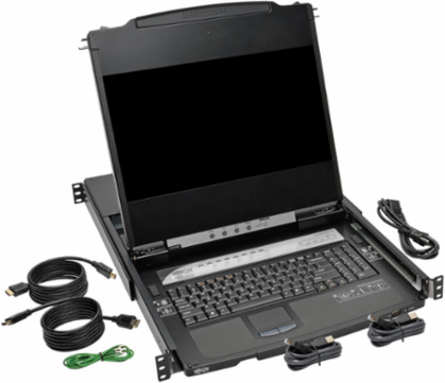

Tripp Lite B030-008-17-IP 8-Port 1U Rack-Mount Console HDMI KVM Switch, 17 Inch LCD, IP Access
- MPN: B030-008-17-IP
- UPC: 037332194206
- PPN: TRP-B030-008-17-IP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control a network of 8 servers or computers directly from one keyboard, mouse and monitor housed in 1U of rack space. Recommended for data centers, server rooms and other environments with multiple servers.
Features
- Control computers/servers locally or via LAN, WAN or Internet

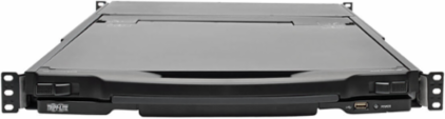

- Occupies just 1U of space in a rack-mountable, dual-rail drawer
- Supports video resolutions up to 1920 x 1080
- Allows up to 64 authorized users and 32 concurrent remote log-ins
- Works with all major operating systems and browsers
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 100V AC to 240V AC
- Maximum Input Amps
- 1A
- Ports

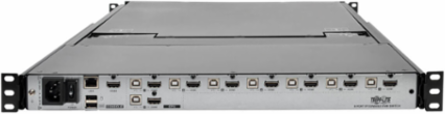

- 8 HDMI Female
- Video Resolution
- 1920 x 1080
- LCD Monitor Size
- 17 in.
- Storage Temperature Range
- -4 to 140 F (-20 to 60 C)
- Weight
- 26.01 lbs
- Mount Compatibility
- EIA-standard 19 in. rack, 2-post rack with optional kit
- Authentication
- RADIUS, LDAP/S
- IP Remote Access
- Yes
- Color
- Black
Input Frequency50/60Hz
Number of Users1
PC/Server ConnectionsUSB, HDMI, DVI, PS/2
Rack Unit Size1U
Operating Temperature Range32 to 104 F (0 to 40 C)
Relative Humidity0% to 80% RH, Non-condensing
Dimensions1.73 x 18.9 x 26.77 in.
Security Encryption1024-bit RSA, 256-bit AES, 56-bit DES, 128-bit SSL
CertificationsUL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE
Port ControlPush Buttons, Hotkeys, OSD
Warranty Period3-year limited warranty
