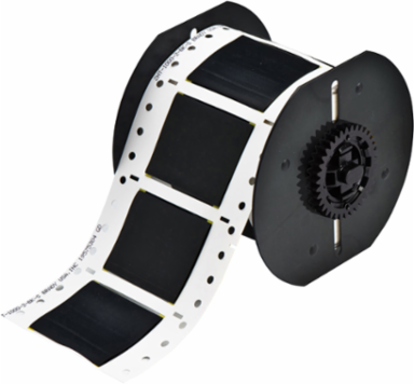

Brady B33D-1000-2-344BK PermaSleeve Black Heat-Shrink Wire Marking Sleeves, 1 Inch Dia x 2 Inch W
- MPN: B33D-1000-2-344BK
- UPC: 662820982432
- PPN: BRD-B33D-1000-2-344BK
- UNSPSC: 55121612
CAD
$1082.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
Features
- Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Black
- For Use with Printer
- BBP®33 Label Printer; BradyPrinter i3300
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP33
- Quantity per Row
- 1
- Ribbon Series
- R6700
- Suggested Ribbon Series
- R6700
- Total Quantity
- 250
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-344
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 50.80 mm W x 42.16 mm H
- Height (in/ft/yd)
- 1.66 in
- Maximum Service Temperature °C
- 130.6 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.95 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.333 in
- Minimum Wire Gauge
- 2 AWG
- Recovered Diameter (mm/cm/m)
- 8.5 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 1 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Vertical Repeat
- 2 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Quantity per Roll250
Recommended RibbonB30-R6700-WT
Shrink Ratio3:1
Total Qty per Pack250 Sleeve(s) / Roll
Trade NameBBP®33 PermaSleeve®
Brady Material NumberB-344
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.16 mm
Maximum Service Temperature °F267 °F
Maximum Wire Diameter (mm/cm/m)24.13 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)8.46 mm
Recovered Diameter (in/ft/yd)0.333 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)25.4 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Wire Diameter Range0.333 in to 0.95 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
