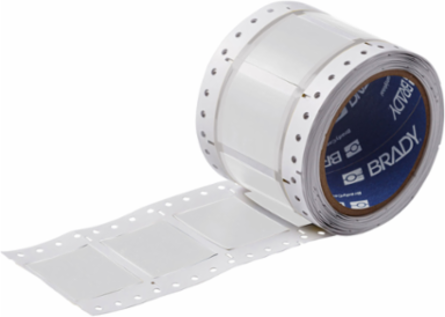

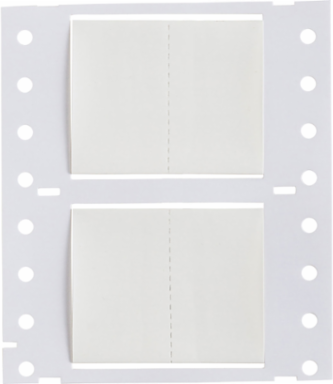

Brady 3FR-1000-2-WT-S-2 Double Sided PermaSleeve Polyolefin Fluid Resistant Wire Marking Sleeves, 1" Dia x 1", Roll of 200, White
Brady 3FR-1000-2-WT-S-2 Double Sided PermaSleeve Polyolefin Fluid Resistant Wire Marking Sleeves, 1" Dia x 1", Roll of 200, White
- MPN: 3FR-1000-2-WT-S-2
- UPC: 754473899929
- PPN: BRD-3FR-1000-2-WT-S-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$446.46/ EA
Description
The B-344 PermaSleeve material is suitable for use in applications that require greater resistance to harsh chemicals such as fuel and high power cleaning solvents.
Features
- Ideal for use in the aerospace industry, specifically in planes powered by hydrogen fuel cells
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72; i7100; i5100
- Quantity per Row
- 2
- Ribbon Series
- R6600
- Sleeve Slits
- Yes
- Total Qty per Pack
- 200 Sleeve(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-344
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 25.40 mm W x 42.16 mm H
- Height (in/ft/yd)
- 1.66 in
- Maximum Service Temperature °C
- 130.6 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.95 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.333 in
- Recovered Diameter (in/ft/yd)
- 0.333 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Web Width (mm/cm/m)
- 89.00 mm
Brand NameBrady®
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
Quantity per Roll200
Recommended RibbonIP-R6600; R6600
Shrink Ratio3:1
Suggested Ribbon SeriesR6600
Total Quantity200
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-344
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.16 mm
Maximum Service Temperature °F267 °F
Maximum Wire Diameter (mm/cm/m)24.13 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)8.46 mm
Recovered Diameter (mm/cm/m)8.5 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)1 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat2 in
Wire Diameter Range0.333 in to 0.95 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
