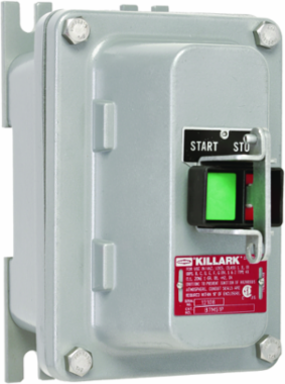

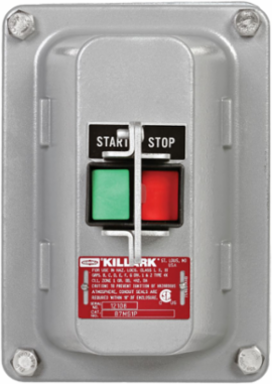

Killark B7MS1PS-3 Aluminum Compact Push Button Enclosure, 1.5 Hp Max, Nema 4, 4X Rated
Killark B7MS1PS-3 Aluminum Compact Push Button Enclosure, 1.5 Hp Max, Nema 4, 4X Rated
- MPN: B7MS1PS-3
- UPC: 783936077369
- PPN: HBL-B7MS1PS-3
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2280.86/ EA
Description
Killark's B7MS Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Available with either "Push-Button" or "Rotary" style operators, the internal IEC-style starter is available in manufacturer configurations including Square D and ABB. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Type 4, 4X rated for protection from hose directed water and corrosion.
- Pre-drilled to facilitate easy field installation of starters.
- Either rotary or push button operator with included lock-out provision.
- Provisions for drain and breather.
- Bolt on ductile mounting lugs.
- Two NPT conduit openings provided as standard
- Additional custom openings on request.
- Universal design accommodates, as standard, IEC starter manufacturers including Square D, CutlerHammer, ABB, Siemens, Moeller, Sprecher+ Schuh, Allen-Bradley, Advance Controls, and WEG.
- Copper-free aluminum (less than 4/10 of 1% copper content).
- Cover bolts are 316 stainless steel.
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 5.750 in
- Horsepower - Maximum
- 1.5
- Special Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
- Voltage Rating
- 600 V
- Diameter - Inside
- 0.482 in
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Width5.750 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ApplicationThe PRISM B7MS Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is neede
TypeAluminum Compact Push Button Style Enclosure With Starter
ActuatorPushbutton
FlexibilityRigid or IMC Conduit
ARRA CompliantContact Manufacturer
Description - InvoiceB7MS SZ1 ENCLO PB IEC SQD FLA 1.6-2.5
Harmonization Code8536504000
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D253
Gross Weight with Packaging12.5
SeriesB7MS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936077369
Certifications
- EU RoHS Indicator
- Contact Manufacturer
