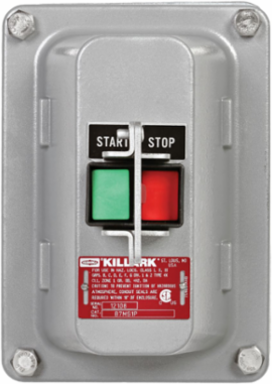

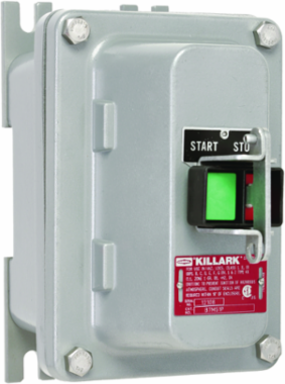

Killark B7MS1PRW Aluminum Compact Push Button Enclosure 10 Inch x 7.5 Inch x 9.25 Inch, NEMA 4/4X Rated
- MPN: B7MS1PRW
- UPC: 783936010045
- PPN: HBL-B7MS1PRW
- UNSPSC: 39121521
CAD
$2270.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Killark's B7MS Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Available with either "Push-Button" or "Rotary" style operators, the internal IEC-style starter is available in manufacturer configurations including Square D and ABB. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Type 4, 4X rated for protection from hose directed water and corrosion.
- Pre-drilled to facilitate easy field installation of starters.
- Either rotary or push button operator with included lock-out provision.
- Provisions for drain and breather.
- Bolt on ductile mounting lugs.
- Two NPT conduit openings provided as standard
- Additional custom openings on request.
- Universal design accommodates, as standard, IEC starter manufacturers including Square D, CutlerHammer, ABB, Siemens, Moeller, Sprecher+ Schuh, Allen-Bradley, Advance Controls, and WEG.
- Copper-free aluminum (less than 4/10 of 1% copper content).
- Cover bolts are 316 stainless steel.
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Horsepower - Maximum
- 30
- Application
- The PRISM B7MS Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is neede
- Special Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
- Width
- 7.5 in
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936010045
- NAICS Code
- 3353147101
Dimensions10 in x 7.5 in x 9.25 in
Height9.25 in
Length10 in
Size10 in x 7.5 in x 9.25 in
TypeAluminum Compact Push Button Style Enclosure Without Starter
ActuatorPushbutton
ARRA CompliantContact Manufacturer
Description - InvoiceSTARTER IEC, B7EP, PB FOR A-B OR S+S
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D253
Gross Weight with Packaging11.55
SeriesB7MS Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
