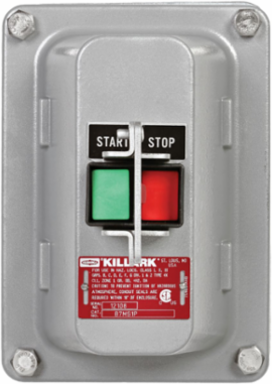

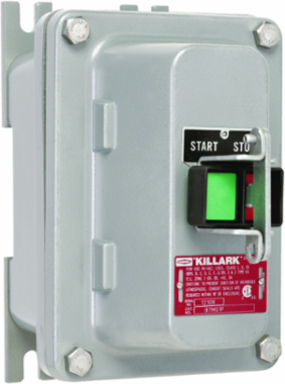

Killark B7MS1PS-8 Aluminum Compact Push Button Enclosure with IEC Starter, 15Hp Max, NEMA 4/4X
- MPN: B7MS1PS-8
- UPC: 783936012278
- PPN: HBL-B7MS1PS-8
- UNSPSC: 39121521
CAD
$3332.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Killark's B7MS Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Available with either "Push-Button" or "Rotary" style operators, the internal IEC-style starter is available in manufacturer configurations including Square D and ABB. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Type 4, 4X rated for protection from hose directed water and corrosion.
- Pre-drilled to facilitate easy field installation of starters.
- Either rotary or push button operator with included lock-out provision.
- Provisions for drain and breather.
- Bolt on ductile mounting lugs.
- Two NPT conduit openings provided as standard
- Additional custom openings on request.
- Universal design accommodates, as standard, IEC starter manufacturers including Square D, CutlerHammer, ABB, Siemens, Moeller, Sprecher+ Schuh, Allen-Bradley, Advance Controls, and WEG.
- Copper-free aluminum (less than 4/10 of 1% copper content).
- Cover bolts are 316 stainless steel.
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Application
- The PRISM B7MS Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is neede
- Type
- Aluminum Compact Push Button Style Enclosure With Starter
- Actuator
- Pushbutton
- Flexibility
- Rigid or IMC Conduit
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- B7 SERIES STRTR ENCL PB IEC SQD 15HP
- Harmonization Code
- 8536504000
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D253
- Gross Weight with Packaging
- 12.5
- Series
- B7MS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Width5.750 in
Horsepower - Maximum15
Special FeaturesCompact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Push but
Voltage Rating600 V
Diameter - Inside2.19 in
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936012278
NAICS Code3353133104
Certifications
- EU RoHS Indicator
- Contact Manufacturer
