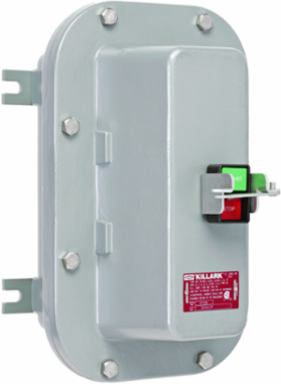

Killark B7MSN2PS1C Aluminum 3-Pole NEMA 4X Push Button Enclosure, 10Hp Max, Size 1
- MPN: B7MSN2PS1C
- UPC: 783936009827
- PPN: HBL-B7MSN2PS1C
- UNSPSC: 39121521
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B7MSN Series - Aluminum 3-Pole, 3-Phase Compact Push Button Style Enclosure with Manual Square D NEMA Starter - B7EQ Enclosure - NEMAstarter Size 1 - 10Hp Max
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Type 4, 4X rated for protection from hose directed water and corrosion.
- Pre-drilled to facilitate easy field installation of starters.
- Large double green/red start-stop push buttons.
- Can be pad locked in “OFF” position.
- Provisions for drain and breather.
- Bolt on ductile mounting lugs.
- Two 1-1/2” NPT conduit openings provided as standard, with custom openings on request.
- Universal design accommodates, as standard, starter manufacturers including Allen-Bradley 609 Series, Cutler-Hammer B100M Series, GE CR106 Series and Square D 2510M Series.
- Copper-free aluminum (less than 4/10 of 1% copper content).
- Cover bolts are 316 stainless steel.
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Large do
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Size | 1 |
| Special Features | Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Large do |
| Voltage Rating | 600 V |
| Actuator | Double Pushbutton |
| Flexibility | Rigid or IMC Conduit |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | B7 SERIES MANUAL STRTR 3P SIZE 1 SQD |
| Harmonization Code | 8536504000 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D253 |
| CSA File Number | LR11714 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936009827 |
| NAICS Code | 3353133104 |
| Width | 10.000 in |
|---|---|
| Horsepower - Maximum | 10 |
| Application | The PRISM B7MSN Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is need |
| Type | Aluminum Compact Push Button Style Enclosure With Starter |
| Action | SP |
| Contact Rating | 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; |
| Nema Rating | 3, 4, 4X |
| Class Code | D25 |
| Freight Class Code | 06316011 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 25.4 |
| Series | B7MSN Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
