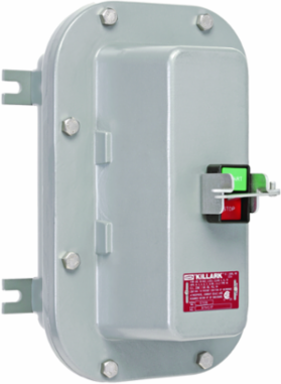

Killark B7MSN2PS0C Aluminum 3-Pole Push Button Enclosure NEMA 4 Rated, Size 0, 5Hp Max
Killark B7MSN2PS0C Aluminum 3-Pole Push Button Enclosure NEMA 4 Rated, Size 0, 5Hp Max
- MPN: B7MSN2PS0C
- UPC: 783936009810
- PPN: HBL-B7MSN2PS0C
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3694.08/ EA
Description
B7MSN Series - Aluminum 3-Pole, 3-Phase Compact Push Button Style Enclosure with Manual Square D NEMA Starter - B7EQ Enclosure - NEMAstarter Size 0 - 5Hp Max
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Type 4, 4X rated for protection from hose directed water and corrosion.
- Pre-drilled to facilitate easy field installation of starters.
- Large double green/red start-stop push buttons.
- Can be pad locked in “OFF” position.
- Provisions for drain and breather.
- Bolt on ductile mounting lugs.
- Two 1-1/2” NPT conduit openings provided as standard, with custom openings on request.
- Universal design accommodates, as standard, starter manufacturers including Allen-Bradley 609 Series, Cutler-Hammer B100M Series, GE CR106 Series and Square D 2510M Series.
- Copper-free aluminum (less than 4/10 of 1% copper content).
- Cover bolts are 316 stainless steel.
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Large do
Specifications
Specifications
- Special Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes. NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Pre-drilled to facilitate easy field installation of starters. Large do
- Country of Origin
- US
- Each - Width
- 10.000 in
- Horsepower - Maximum
- 5
- Voltage Rating
- 600 V
- Actuator
- Double Pushbutton
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
ARRA CompliantContact Manufacturer
Width10.000 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Size0
ActionSP (per circuit)
ApplicationThe PRISM B7MSN Series of non-reversing, manual line voltage starters and enclosures are suitable for use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors, and where overload protection is need
FlexibilityRigid or IMC Conduit
TypeAluminum Compact Push Button Style Enclosure With Starter
Description - InvoiceB7 SERIES MANUAL STRTR 3P SIZE 0 SQD
Harmonization Code8536509999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D253
Gross Weight with Packaging25.4
SeriesB7MSN Series
Carton - SCC-14 Next Lower Level Sub Pack00783936009810
Certifications
- EU RoHS Indicator
- Contact Manufacturer
