Balluff

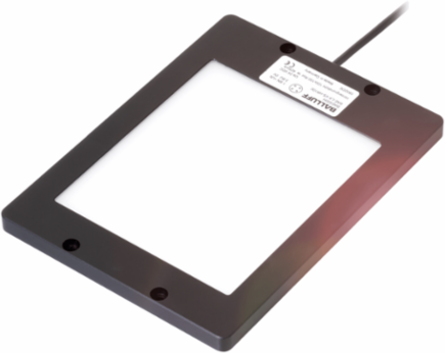

Balluff BAE LX-VS-HI200 LED Infrared Background Light, 180 x 9.5 x 255 mm, IP54, 875 nm

LED Infrared Background Light, 180 x 9.5 x 255 mm, IP54, 875 nm
  • MPN: BAE LX-VS-HI200
  • PPN: BAL-BAE00JE

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1800.90/ EA

Description

With our background lighting, you can check dimensions and shapes simply and for any material or surface. You can choose between different designs with various light fields and variants with red light and infrared. Our background lighting can also be used as diffuse surface illumination.

Specifications

Light Type
LED Infrared
Current Draw Max
708 mA
Ambient Temperature
-10 to 55 0C
Illumination Area
200 x 150 mm
Connection
Cable with connector, M12x1 Male, 4-pin, 0.30 m
IP Rating
IP54
Wave Length875 nm
Rated Operating Voltage24 V DC
Beam Angle1006 x 806
Dimension180 x 9.5 x 255 mm
MaterialAluminum anodized, black, Glass, PMMA
ComplianceCE, EAC, WEEE

Downloads
