Balluff

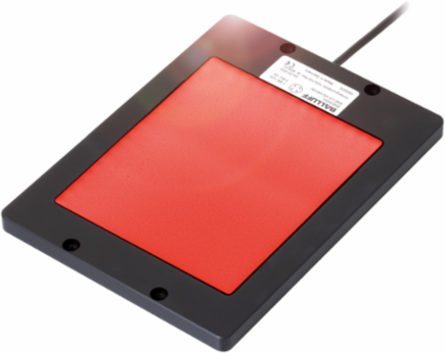

Balluff BAE LX-VS-HR200 LED Background Light, 5100 Lux, 200 x 150 mm, IP54 Rating

LED Background Light, 5100 Lux, 200 x 150 mm, IP54 Rating
  • MPN: BAE LX-VS-HR200
  • PPN: BAL-BAE00JC

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1666.34/ EA

Description

With our background lighting, you can check dimensions and shapes simply and for any material or surface. You can choose between different designs with various light fields and variants with red light and infrared. Our background lighting can also be used as diffuse surface illumination.

Specifications

Illuminance
5100 Lux
Current Draw
625 mA
Beam Angle
100° x 80°
Dimension
180 x 9.5 x 255 mm
Material
Aluminum anodized, black, Glass, PMMA
Ambient Temperature
-10 to 55 °C
Light Type
LED Red light
Operating Mode
Normal
Operating Voltage24 V DC
Illumination Area200 x 150 mm
Wave Length617 nm
ConnectionM12x1-Male, 4-pin, 0.30 m cable
IP RatingIP54
Approval/ConformityCE, EAC, WEEE
Digital InputsTrigger

Downloads
