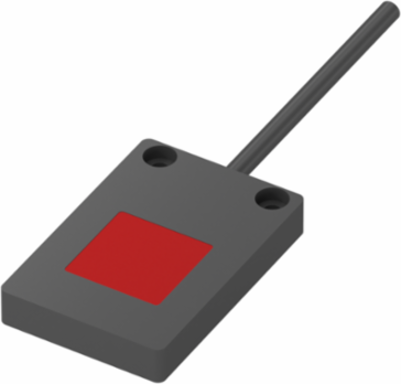

Balluff BAE LX-VS-HR025 LED Background Light 43x9.5x64.5 mm, 617 nm Wavelength, IP54
Balluff BAE LX-VS-HR025 LED Background Light 43x9.5x64.5 mm, 617 nm Wavelength, IP54
- MPN: BAE LX-VS-HR025
- PPN: BAL-BAE000E
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$600.26/ EA
Description
Illuminate your workspace with the Balluff LED Background Light, designed to provide optimal visibility in various industrial applications. Measuring 43 x 9.5 x 64.5 mm, this sleek and compact lighting solution emits a vibrant red light at a wavelength of 617 nm, ensuring clarity and precision in your tasks. With an impressive illuminance of 350 Lux at a distance of 0.1 m and a beam angle of 40° x 40°, it effectively lights up a targeted area of 25 x 25 mm.
Constructed from durable aluminum with a sleek black anodized finish, this background light is built to withstand challenging environments, featuring an IP54 rating for dust and water resistance. Operating at a rated voltage of 24 V DC and capable of functioning in ambient temperatures ranging from -10 to 55 °C, it is suitable for continuous operation. The Balluff LED Background Light is not only practical but also conforms to various international standards, ensuring reliability and performance in your operations.
Specifications
- Voltage
- 24 V DC
- Wavelength
- 617 nm
- Illuminance (0.1 m)
- 350 Lux
- Operating Temperature Range
- -10 to 55 °C
- Connection
- Cable with connector, M12x1-Male, 4-pin, 0.3 m
- IP Rating
- IP54
- Country of Origin
- Germany
Current Draw Max.208 mA
Beam Angle40° x 40°
Illuminated Area25 x 25 mm
Dimensions43 x 9.5 x 64.5 mm
MaterialAluminum anodized black; Glass; PMMA
Approval/ConformityCE, UKCA, WEEE
