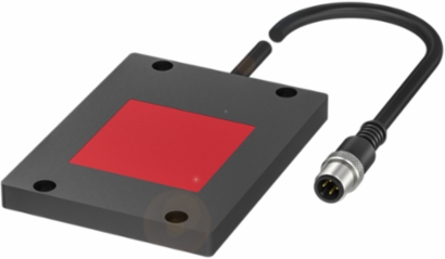

Balluff BAE LX-VS-HR050 LED Red Background Light, 617 nm, 50 x 50 mm Illumination Area, IP54
Balluff BAE LX-VS-HR050 LED Red Background Light, 617 nm, 50 x 50 mm Illumination Area, IP54
- MPN: BAE LX-VS-HR050
- PPN: BAL-BAE000F
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$713.80/ EA
Description
Illuminate your workspace with the Balluff LED Red Background Light, designed for optimal performance and reliability. This compact yet powerful light features a 50 x 50 mm illumination area with a wavelength of 617 nm, delivering a bright output of 1250 Lux at a distance of 0.1 m. Constructed from durable anodized aluminum and glass, it is rated IP54 for protection against dust and water, making it suitable for various environments with ambient temperatures ranging from -10 to 55 °C. With a maximum current draw of 250 mA and a beam angle of 42° x 42°, this background light is engineered for continuous operation and is easy to integrate into your systems with its M12x1 male connector.
Specifications
- Wavelength
- 617 nm
- Beam Angle
- 42° x 42°
- Illuminance
- 1250 Lux at 0.1 m
- Ambient Temperature Range
- -10 to 55 °C
- IP Rating
- IP54
- Dimension
- 80 x 9.5 x 105 mm
- Approval/Conformity
- CE, UKCA, WEEE
- Operating Mode
- Normal (continuous operation)
- Version
- Background light
Current Draw Max.250 mA
Rated Operating Voltage24 V DC
Illumination Area50 x 50 mm
MaterialAluminum anodized black, Glass, PMMA
ConnectionCable with connector, M12x1-Male, 4-pin, 0.3 m
Country of OriginGermany
Light TypeLED Red light
Digital InputsTrigger
