LED Background Light 4800 Lux, 150 x 100 mm, IP54, 24 V
Balluff

Balluff BAE LX-VS-HR150 LED Background Light 4800 Lux, 150 x 100 mm, IP54, 24 V

  • MPN: BAE LX-VS-HR150
  • PPN: BAL-BAE00C5

CAD

$1339.36

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

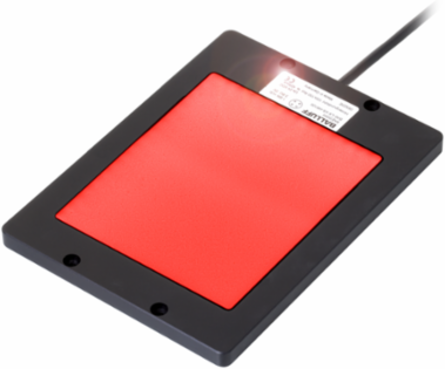

The Balluff LED background light is engineered to deliver exceptional illumination with an impressive brightness of 4800 Lux, making it an ideal choice for various industrial applications. Designed with a robust aluminum anodized body and featuring a glass and PMMA construction, this background light ensures durability while maintaining a sleek profile. With a compact illumination area of 150 x 100 mm and a beam angle of 80° x 60°, it provides optimal lighting coverage for your workspace. Operating at a voltage of 24 V and with a maximum current draw of 500 mA, it is suitable for continuous operation in environments with temperatures ranging from -10 to 55 °C. The IP54 rating ensures protection against dust and water, making it a reliable choice for demanding conditions.

Documentation & Downloads

Specifications

Additional

Illuminance
4800 Lux
Current Draw Maximum
500 mA
Operating Temperature Range
-10 to 55 °C
Illumination Area
150 x 100 mm
IP Rating
IP54
Wave Length
617 nm
Connection
Cable with connector, M12x1 Male, 4-pin, 0.3 m
Light Type
LED Red light
Rated Operating Voltage24 V DC
Beam Angle80 ° x 60 °
Dimensions130 x 9.5 x 205 mm
MaterialAluminum anodized black, Glass, PMMA
Approval/ConformityCE, UKCA, WEEE
Operating ModeNormal (continuous operation)
Country of OriginGermany
Digital InputsTrigger
