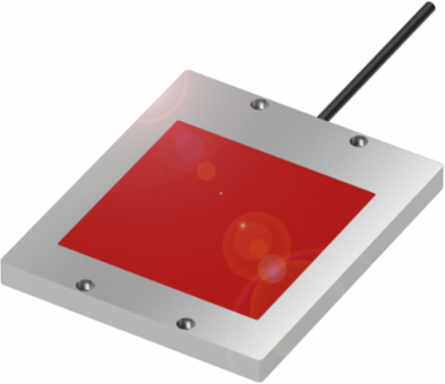

Balluff BAE LX-VS-HR100-E LED Background Light 100 x 100 mm, IP69K, 3700 Lux
- MPN: BAE LX-VS-HR100-E
- PPN: BAL-BAE00JF
CAD
$1833.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Balluff LED background light is engineered for exceptional performance and durability, making it an ideal choice for a variety of industrial applications. With an illumination area of 100 x 100 mm and a powerful output of 3700 Lux, this light ensures optimal visibility in challenging environments. Built to withstand high-pressure washdowns, it boasts an IP69K rating, while its robust construction from stainless steel and glass guarantees longevity even in harsh conditions. Designed for continuous operation, it operates at a rated voltage of 24 V and features a compact dimension of 130 x 9.5 x 155 mm, making it easy to integrate into existing setups.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V
- Illumination Area
- 100 x 100 mm
- Beam Angle
- 55° x 55°
- Ambient Temperature
- -10 to 55 °C
- Connection
- Cable with connector, M12x1-Male, 4-pin, 0.3 m
- IP Rating
- IP69K
- Digital Inputs
- Trigger
- Approval/Conformity
- CE, UKCA, WEEE
Current Draw Max.416 mA
Brightness3700 Lux
Wave Length617 nm
Dimensions130 x 9.5 x 155 mm
Material1.4301 stainless steel, Glass, PMMA
Operating ModeNormal (continuous operation)
Light TypeLED Red light
Country of OriginGermany
