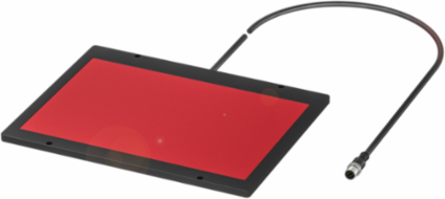

Balluff BAE LX-VS-HR300 LED Background Light 255 x 9.5 x 330 mm, 24 V, 4750 Lux, IP54
Balluff BAE LX-VS-HR300 LED Background Light 255 x 9.5 x 330 mm, 24 V, 4750 Lux, IP54
- MPN: BAE LX-VS-HR300
- PPN: BAL-BAE00MU
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2264.43/ EA
Description
The Balluff LED Background Light is engineered to deliver exceptional illumination in various industrial settings, boasting a compact design of 255 x 9.5 x 330 mm. With a rated operating voltage of 24 V and an impressive illuminance of 4750 Lux at 0.1 m, this background light ensures optimal visibility for your applications. Its robust construction features an anodized aluminum body, glass, and PMMA, while achieving an IP54 rating, making it resistant to dust and water splashes. Designed for continuous operation, it operates effectively in ambient temperatures ranging from -10 to 55 °C, and is equipped with a convenient M12x1 connector for easy installation. Whether used in machinery or inspection systems, this background light is a reliable choice for enhancing operational efficiency.
Specifications
- Voltage
- 24 V
- Current Draw Max.
- 1000 mA
- Operating Temperature Range
- -10 to 55 0C
- Digital Inputs
- Trigger
- Illumination Area
- 300 x 200 mm
- Material
- Aluminum anodized black; Glass; PMMA
- Certifications
- CE, UKCA, WEEE
- Version
- Background light
Illuminance4750 Lux (0.1 m)
Wavelength617 nm
Operating ModeNormal (continuous operation)
Dimensions255 x 9.5 x 330 mm
ConnectionCable with M12x1-Male, 4-pin, 0.3 m
IP RatingIP54
Country of OriginGermany
Light TypeLED Red light
