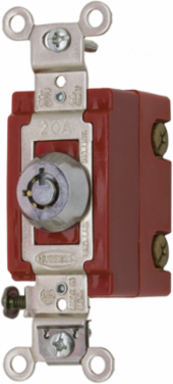

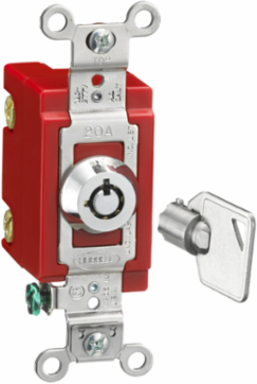

Hubbell Wiring Device-Kellems HBL1221RKL Industrial Grade Barrel Key Locking Switch, 20A 120/277V AC, Single Pole, Chrome
- MPN: HBL1221RKL
- UPC: 783585431574
- PPN: HBL-HBL1221RKL
- UNSPSC: 39122224
CAD
$259.43
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Chrome
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Number of Poles | Single Pole |
| Operating Temperature | -406C to 756C |
| Width | 1.25 in |
| Size | 4.06 in x 1.25 in x 2.02 in |
| Connectivity | Back and Side Wired |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Compliance | UL Listed |
| Country of Origin | US |
| Voltage | 120-277 VAC |
|---|---|
| Temperature Rise | 306C maximum at rated current |
| Length | 4.06 in |
| Height | 2.02 in |
| Wire Size | #14 AWG to #10 AWG |
| Material | Thermoset, Brass, Silver Alloy, Chrome |
| Flammability Rating | UL 94V-2 |
| Color | Chrome |
