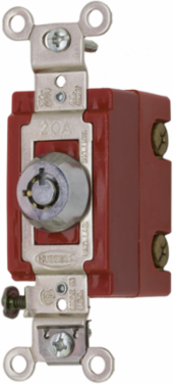

Hubbell Wiring Device-Kellems HBL1222RKL Industrial Grade Barrel Key Locking Switch, 20A 120/277V AC, Double Pole
Hubbell Wiring Device-Kellems HBL1222RKL Industrial Grade Barrel Key Locking Switch, 20A 120/277V AC, Double Pole
- MPN: HBL1222RKL
- UPC: 783585431734
- PPN: HBL-HBL1222RKL
- UNSPSC: 39122224
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$282.26/ EA
Description
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, Chrome
Features
- Large brass binding head screws with deep slots
- Lock circuits On or Off
- Strip gauge for accurate wiring
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 4.06 in x 1.25 in x 2.02 in
- Height
- 2.02 in
- Length
- 4.06 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Application
- Back and Side Wired
- Size
- 4.06 in x 1.25 in x 2.02 in
- Type
- Locking
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.25 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- DP TOG, IND GRD, 20A 120/277V, LOCKING
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.2 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 8.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width2.170 in
Industry Standard(s)UL Listed
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating20 A
ColorChrome
StandardUL Listed
Voltage Rating120-277 VAC
Weight0.2 lb.
ConnectivityBack and Side Wired
Number Of PolesDouble Pole
StyleDouble Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesExtra Heavy Duty
BOX SIZE4.495x10.185x5.185 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585431734
Case - Total Units40 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
