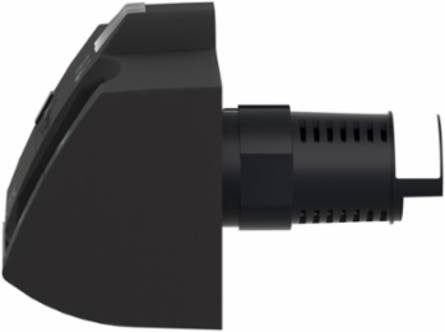

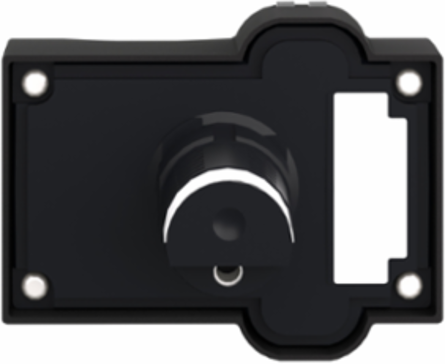

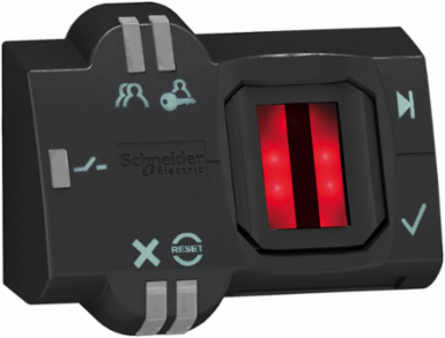

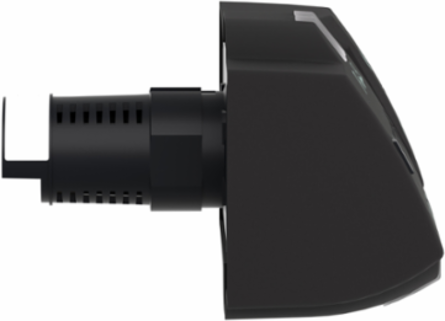

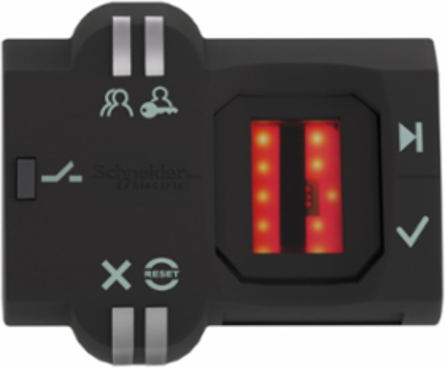

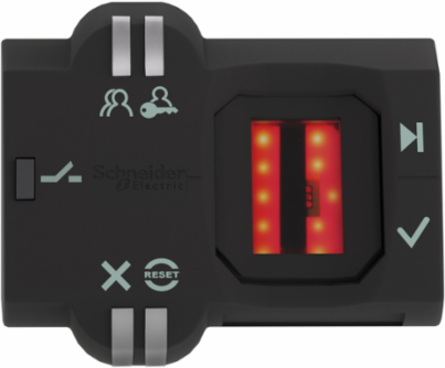

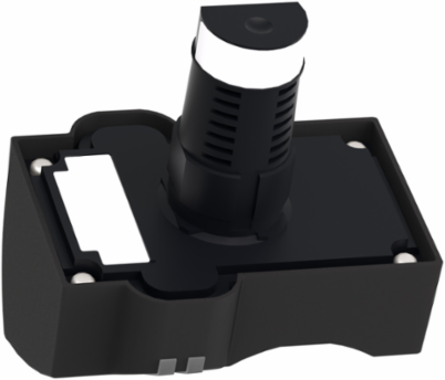

Schneider Electric XB5S2B2L2 Electric XB5S2B2 Biometric Switch, 22mm, IP65, 24V DC, 0.17 kg, Fingerprint Reader
- MPN: XB5S2B2L2
- PPN: SCH-XB5S2B2L2
CAD
$556.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

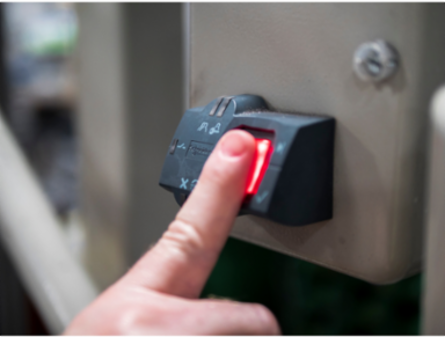

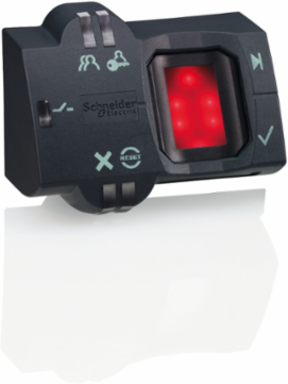

This Harmony XB5, monostable biometric switch has a pre-wired cable connectionis supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Features
- Equipped with an advanced biometric scanner that stores up to 200 distinct operator fingerprints, this standalone switch replaces easily lost keys or stolen passwords with unforgeable physical authentication. By ensuring that only fully certified personnel can initialize high-risk industrial automation lines, it dramatically cuts down on operator-error downtime and fulfills strict facility access-control protocols.
- Engineered to operate seamlessly on standard 24V AC/DC control loops, this switch features a highly stable 200mA solid-state PNP output that wires directly into your automation system's inputs. This low-voltage architecture eliminates the need for dedicated external step-down transformers or auxiliary power modules, minimizing control panel clutter and streamlining retrofits on existing manufacturing lines.
- Outfitted with a rugged, factory-sealed 2-meter (6.6 ft) multi-conductor cable, this unit completely eliminates the tedious task of stripping and terminating individual conductors at the machine interface wall. The pre-installed cable design ensures a completely airtight, moisture-proof seal right out of the box, significantly reducing point-of-installation errors and cutting field wiring times in half.
- Protected by a robust, impact-resistant plastic bezel and specialized face seals, this biometric switch carries a rigorous IP65 and NEMA 12 rating against moisture, oil, and airborne dust particles. It is engineered to withstand aggressive spray-downs and gritty factory floor debris without fogging the optical window or degrading sensor accuracy, ensuring reliable reads shift after shift.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Complementary Attributes
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
- Maximum Delay Response
- 1.5 s
Maximum Delay Recovery1.5 s
Maximum Switching Current200 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 70 mA no-load, <= 70 mA no-load<= 70 mA no-load, <= 70 mA no-load
- Local Signalling
- 1 LED (green) for output state indicator, 1 LED (orange) for administrator's registration mode, 1 LED (orange) for operator's registration mode, 1 LED (red) for error, 1 LED (red) for reset
- Product Specific Application
- industrial machines, materials handling
- Vibration Resistance
- +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6
- [Us] Rated Supply Voltage
- 24 V, 24 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.168246875
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.187932291666666
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 450.36
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Device Short Name
- XB5S
- Enclosure Material
- polyamide PA66
- Marking
- CE

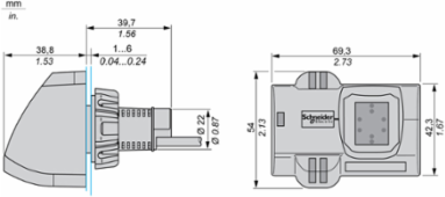

- Mounting Diameter
- 22 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Returnability
- Yes
- Shock Resistance
- 50 gn 11 ms IEC 60068-2-27
- Supply Voltage Limits
- 20-30 V DC
- Total Lifecycle Carbon Footprint
- 61 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2404013EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Connections - Terminals
- 1 pre-wired cable, 3 x 0.34 mm²
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Operating Positionflat surface installation, horizontal position, vertical surface installation
Protection Typeoverload protection, short-circuit, reverse polarity
Certificate AgencyUL, CSA
Carbon Footprint Of The Distribution Phase [A4]0.02223015625, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.08968385416666667, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]56 kg CO2 eq., 56.089044
Local Publishable Date2026-01-12
Future Imap347.86
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404013EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Cable Insulation MaterialPvR
Electrical Connectionfree wire ends 3 2 m
Function Of Modulemonostable
Memory Usage200 users with up to 2 fingerprints per user
Operator Profilefingerprint reader
Product Or Component Typebiometric switch
Range Of ProductHarmony XB5S
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Sustainable PackagingNo
Type Of Operatormomentary
Electrical Connection 131 Cable Length2 m
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. This product will be 50% active mode with power consumption of 6W and 50% in standby mode with 1.2W of power consumption during 10 years of life time and adhering to internations standards IP20, IP65, IEC 61000-6-4 & 61000-6-2.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
[Ures] Residual Voltage1 V closed state
Short-circuit Protection250 mA external fuse gG
Package Weight(Lbs)205.000 g
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-50 °C, -5-50 °C
- Ip Degree Of Protection
- IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2404013EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint60.557137177083334
Environmental DisclosureENVPEP2404013EN
Nema Degree Of ProtectionNEMA 12
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2404013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- biometric switch
Range Of ProductHarmony XB5S
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Output Attributes
- Output Type
- PNP
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
