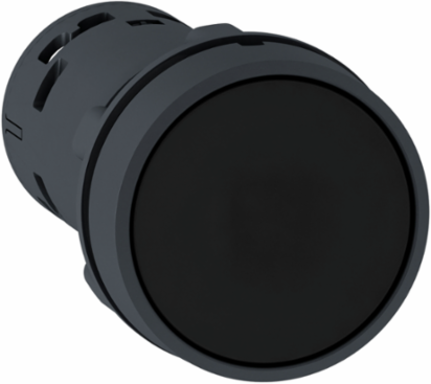

Schneider Electric XB7NA23 Harmony XB7 Round Black Push Button, 22mm, Spring Return, 2NO, IP65

  • MPN: XB7NA23
  • PPN: SCH-XB7NA23
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $41.55

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB7, flush monolithic black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Indonesia

    Physical Attributes

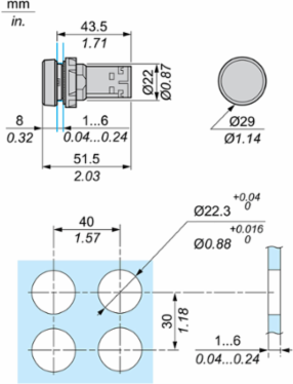

    Cad Overall Depth
    51.5 mm
    Cad Overall Width
    29 mm
    Cad Overall Height29 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Head
    cross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Terminals Description Iso N°1
    (23-24)NO, (13-14)NO, (23-24)NO, (13-14)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0479764244
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.1 kg CO2 eq., 0.1388126458
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Contact Operation
    slow-break
    Device Short Name
    XB7
    Fixing Mode
    fixing nut beneath head 2-2.4 N.m
    Mounting Diameter
    22 mm
    Overvoltage Category
    class II conforming to IEC 61140
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Type Of Operator
    spring return
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    XB7, monolithic push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %
    11
    [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colour
    black
    Short-circuit Protection
    4 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)
    18.144 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
    Certificate AgencyCCC, GOST
    Carbon Footprint Of The Distribution Phase [A4]0.0023726474, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.000096704, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0448052958
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312031EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeXB7
    Contacts Type And Composition2 NO
    Electrical Reliabilityλ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
    Mechanical Durability1000000 cycles
    Operator Profileblack flush, unmarked
    Positive Openingwith (only NO)
    Product Or Component Typepush-button
    Range Of ProductHarmony XB7
    Sale Per Indivisible Quantity10
    Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-2730 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2312031EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-10.3 A 240 V, AC-14, D300 IEC 60947-5-10.6 A 120 V, AC-14, D300 IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509031

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    UL type 3/12NEMA 12 UL 50 E, NEMA 3 UL 50 E
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.2340637173
    Environmental Disclosure
    ENVPEP2312031EN
    Ip Degree Of Protection
    IP20 IEC 60529 rear face)IP65 IEC 60529 front face)
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP2312031EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2312031EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    push-button
    Range Of ProductHarmony XB7

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    monolithic product
