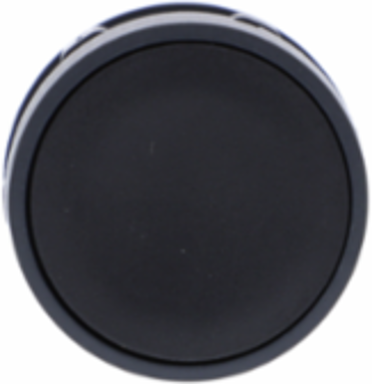

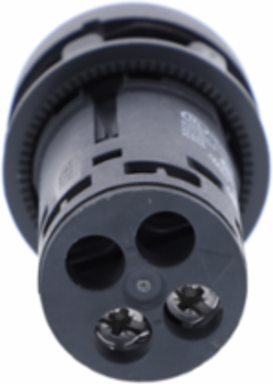

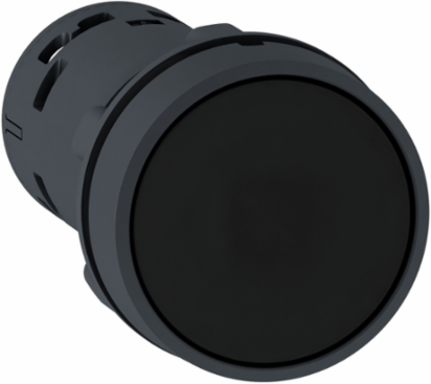

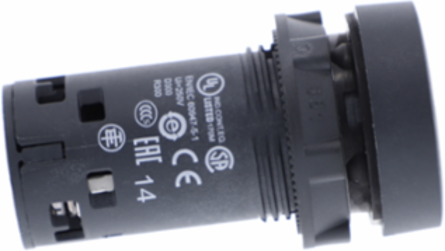

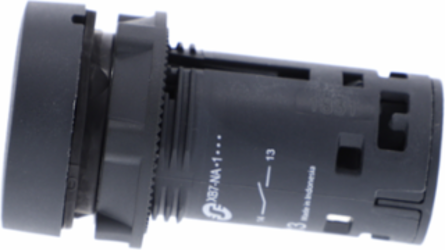

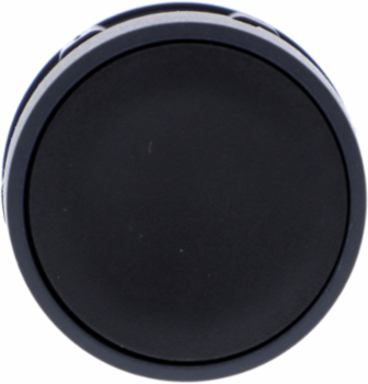

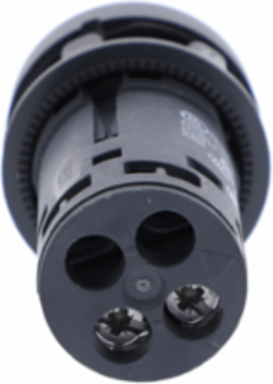

Schneider Electric XB7NA21 Harmony XB7 Push Button, 22mm, Spring Return, 1NO, IP65
Schneider Electric XB7NA21 Harmony XB7 Push Button, 22mm, Spring Return, 1NO, IP65
- MPN: XB7NA21
- PPN: SCH-XB7NA21
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$31.37/ EA
Description
This Harmony XB7, monolithic black push button operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Specifications
Environment
- Product Certifications
- CCC || GOST
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category
- class II IEC 61140
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 12 UL 50 E || NEMA 3 UL 50 E
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1805012EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Terminals Description Iso N°1
- (13-14)NO

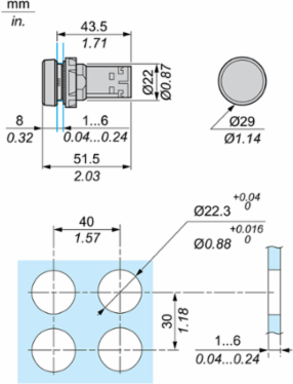

- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
- Mechanical Durability
- 1000000 cycles
- Tightening Torque
- 0.8-1.2 N.m EN 60947-1
- Cad Overall Depth
- 52 mm
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Short-Circuit Protection4 A cartridge fuse gG EN/IEC 60947-5-1
Positive Openingwith (only NO)
Net Weight0.02 kg
Cad Overall Height29 mm
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Contact Operationslow-break
Electrical Reliabilityλ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
Cad Overall Width29 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Specifications
- Range Of Product
- Harmony XB7
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Device Presentation
- monolithic product
- Contacts Type And Composition
- 1 NO
- Operator Profile
- black flush, unmarked
Mounting Diameter22 mm
Product Or Component Typepush-button
Ip Degree Of ProtectionIP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
Sale Per Indivisible Quantity10
Device Short NameXB7
