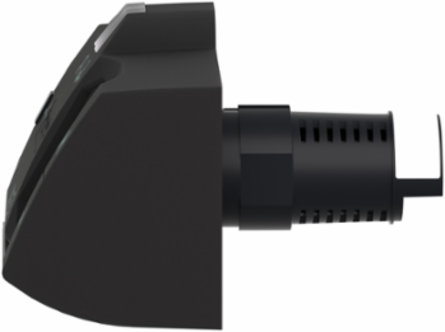

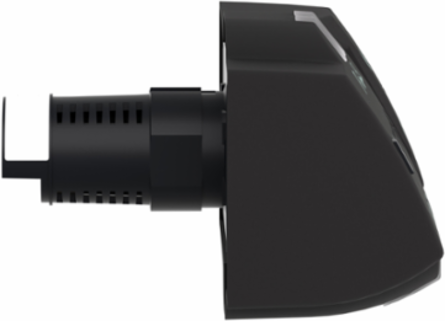

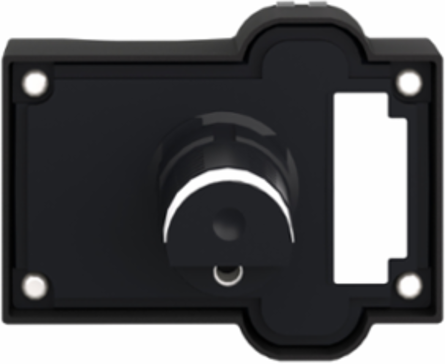

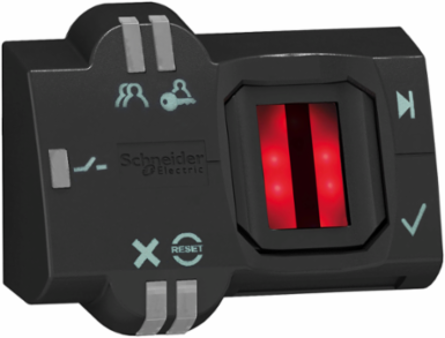

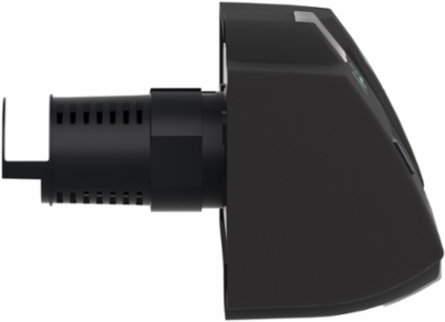

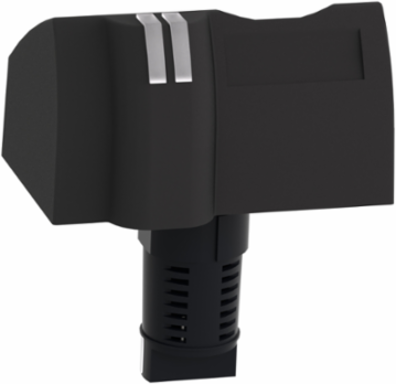

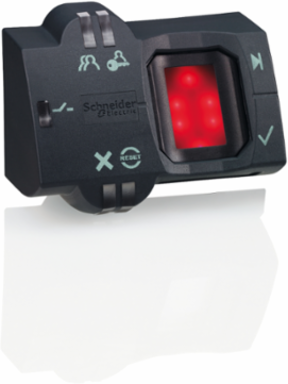

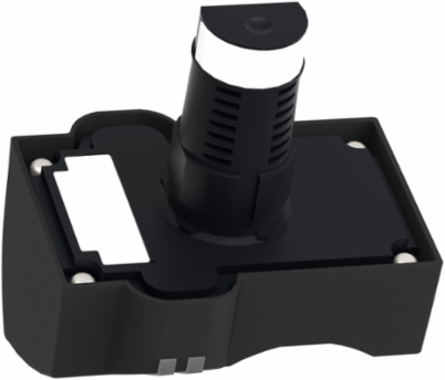

Schneider Electric XB5S2B2M12 Harmony XB5S Biometric Switch, 22mm, M12 Connector, 24V DC
- MPN: XB5S2B2M12
- PPN: SCH-XB5S2B2M12
CAD
$556.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

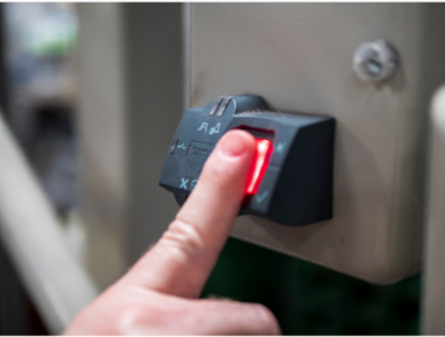

This Harmony XB5, monostable biometric switch has a M12 connectoris supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Complementary Attributes
- Maximum Delay First Up
- 3 s + 0.5 ms per user registered
- Maximum Delay Response
- 1.5 s
Maximum Delay Recovery1.5 s
Maximum Switching Current200 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- <= 70 mA no-load, <= 70 mA no-load<= 70 mA no-load, <= 70 mA no-load
- Local Signalling

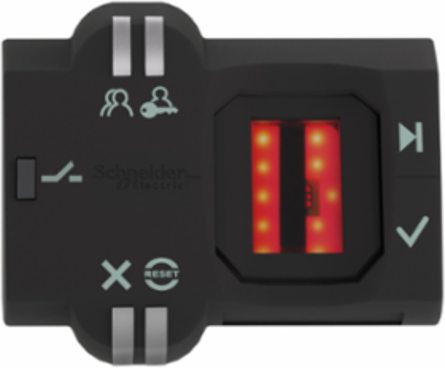

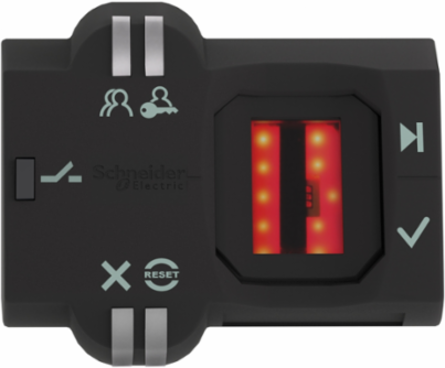

- 1 LED (green) for output state indicator1 LED (orange) for administrator's registration mode, 1 LED (orange) for operator's registration mode1 LED (red) for error, 1 LED (red) for reset
- Product Specific Application
- industrial machines, materials handling
- Vibration Resistance
- +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-61 gn (f= 9-500 Hz) conforming to IEC 60068-2-6
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02223015625, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.08968385416666667, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 56 kg CO2 eq., 56.089044
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2404013EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Insulation Material
- PvR
- Electrical Connection
- M12 connector 0.2 m
- Function Of Module
- monostable
- Memory Usage
- 200 users with up to 2 fingerprints per user
- Operator Profile
- fingerprint reader
- Product Or Component Type
- biometric switch
- Range Of Product
- Harmony XB5S
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Operator
- momentary

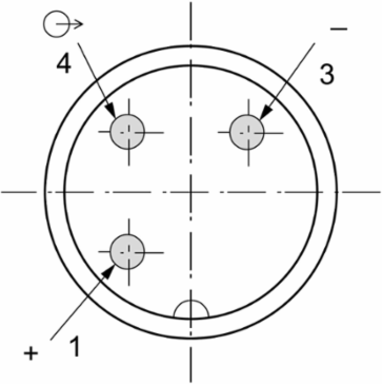

- Electrical Connection 131 Connector Type
- M12
- Pep Code
- ENVPEP2404013EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- [Ures] Residual Voltage
- 1 V closed state
- Short-circuit Protection
- 250 mA external fuse gG
- Package Weight(Lbs)
- 163.0 g
- Take-back
- No
- Customs Code
- 8543709500
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Operating Positionvertical surface installation, horizontal position, flat surface installation
Protection Typeoverload protection, short-circuit, reverse polarity
Certificate AgencyCSA, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.168246875
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.187932291666666
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialdark grey plastic
Device Short NameXB5S
Enclosure Materialpolyamide PA66
MarkingCE

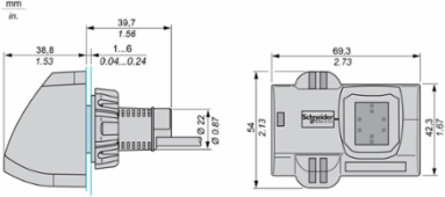

Mounting Diameter22 mm
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
ReturnabilityYes
Shock Resistance50 gn 11 ms IEC 60068-2-27
Supply Voltage Limits20-30 V DC
Total Lifecycle Carbon Footprint61 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Connection 131 Cable Length0.2 m
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 bistable biometric switch has a pre-wired cable connection and is supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. This product will be 50% active mode with power consumption of 6W and 50% in standby mode with 1.2W of power consumption during 10 years of life time and adhering to internations standards IP20, IP65, IEC 61000-6-4 & 61000-6-2.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %2
[Us] Rated Supply Voltage24 V24 V DC
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-50 °C, -5-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 60.557137177083334
- Environmental Disclosure
- ENVPEP2404013EN
- Ip Degree Of Protection
- IP20 IEC 60529 rear face)IP65 IEC 60529 front face)
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2404013EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 12
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2404013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- biometric switch
Range Of ProductHarmony XB5S
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Output Attributes
- Output Type
- PNP
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
