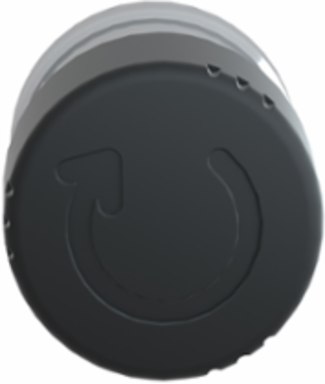

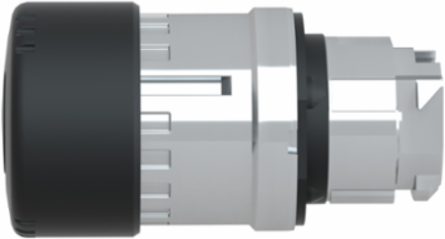

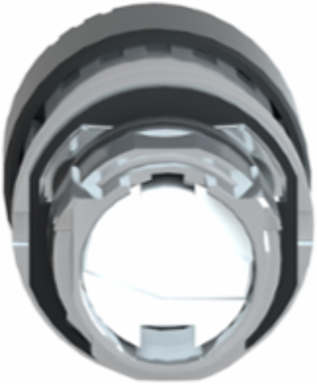

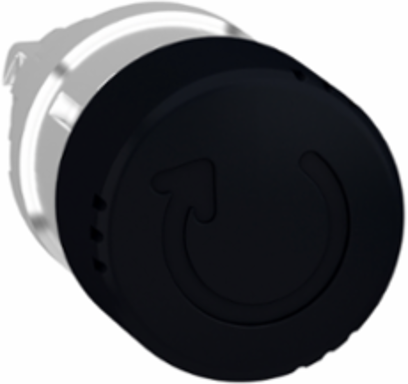

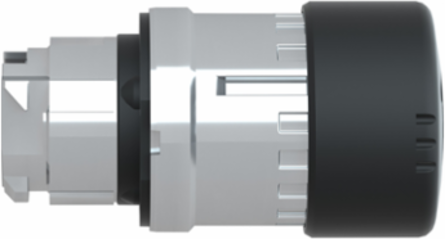

Schneider Electric ZB4BS42 Harmony XB4 30mm Mushroom Push Button Head, Metal, IP66, Latching
- MPN: ZB4BS42
- PPN: SCH-ZB4BS42
CAD
$74.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4, 30mm mushroom black button head operates with latched turn to release mechanism. This 30mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 30mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes
- Cad Overall Depth
- 57 mm
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- chromium plated metal, chromium plated metal
- Operator Profile
- black mushroom Ø 30 mm, unmarked, mushroom Ø 30 mm, mushroom Ø 30 mm
- Operator Profile 1 Operator Profile
- mushroom Ø 30 mm, mushroom Ø 30 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0092896681, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003116063, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 38.53
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 12 %
- Device Short Name
- ZB4
- Group Of Product
- mushroom turn to release
- Main Group
- mushroom head
- Mechanical Durability
- 500000 cycles
- Overvoltage Category
- class I conforming to IEC 60536
- Product Or Component Type
- head for non-illuminated push-button
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- latching
- X C Cap Or Lens Color
- black
- Pep Code
- ENVPEP2201004_V1-EN
- Pep Verification Date
- 2022-01-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC11 3 single front mounting, C15 1 single front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C10 4 single and double front mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyBV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0083645335
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7603506575
Local Data StatusPublishable
Return IndicatorY
Future Msrp49.88
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2201004EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content23 %
Compatibility CodeZB4
Gcr BridgeZB4BRCUST02
Head Typestandard
Markingunmarked
Mounting Diameter22 mm
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resetturn to release
Sale Per Indivisible Quantity1
Software VersionEIME v5.9.3
Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
X C Productmushroom turn to release
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEmergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
Energy Model - Manufacturing [A1-a3]Energy model used: Pisek, Czech Republic
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)72.575 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 23 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.7783164654
- Environmental Disclosure
- ENVPEP2201004_V1-EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2201004_V1-EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2201004EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-01-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
