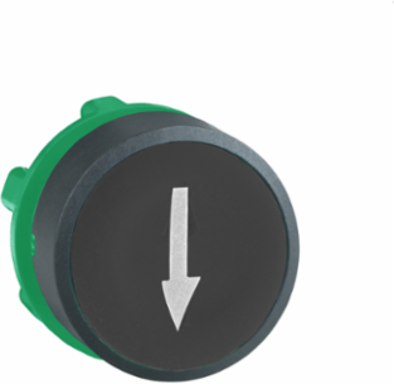

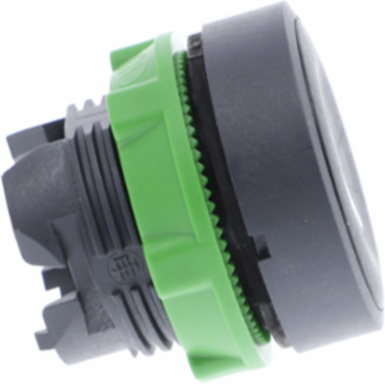

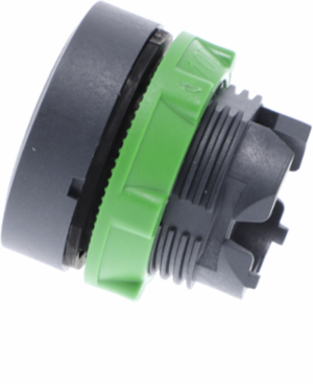

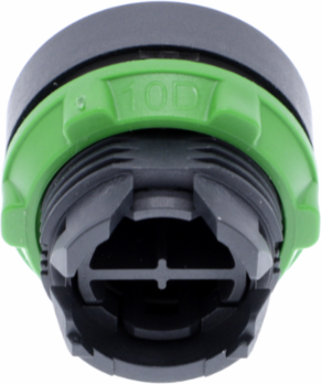

Schneider Electric ZB5AA335 Harmony XB5 Black Plastic Push Button Head 22mm Spring Return
- MPN: ZB5AA335
- PPN: SCH-ZB5AA335
CAD
$20.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, flush black button head operates with a spring return mechanism. It is marked with a "Down arrow" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- This operator features a clear, permanent white Down Arrow symbol engraved onto a flush black actuator surface. This ensures immediate visual recognition for machine operator safety during directional commands like lowering, reversing, or descending, while preventing the marking from wearing off under heavy daily use.
- This non-illuminated pushbutton head is designed with a standard 22mm mounting diameter, making it a drop-in replacement for existing Harmony XB5 plastic control stations or standard industrial panels. It mounts quickly via a snap-fit assembly onto standard fixing collars and contact blocks, minimizing machine downtime during maintenance cycles.
- Built to withstand extreme industrial conditions, this module carries IP66, IP67, IP69, and IP69K ratings, alongside NEMA 4X and NEMA 13 certifications. It offers full resistance against dust infiltration, high-pressure water jets (1015.3 psi at 55C), and heavy chemical washdowns, making it ideal for food processing, marine, and chemical applications.
- Engineered with a highly resilient spring return (momentary action) mechanism, this switch head features a mechanical durability rating of 10,000,000 cycles. It provides long-term operational reliability in high-frequency applications, eliminating the need for frequent replacement components.
- This industrial-grade plastic bezel operator is rated for a wide ambient operating temperature range from -40C to 70C (-40F to 158F). It maintains structural integrity and tactile responsiveness without cracking in sub-zero outdoor conditions or warping in high-heat manufacturing environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes

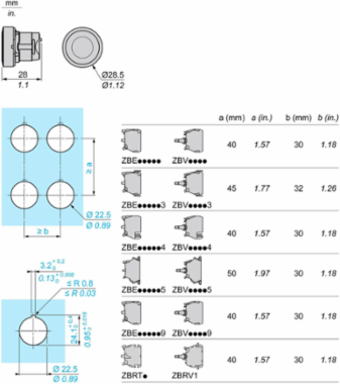

- Cad Overall Depth
- 28 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Color Of Markingwhite
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Electrical Composition Code
- C1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
- Operator Profile 1 Cap Operator Or Lens Color
- black
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0063542220714788555, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0047978866516138205, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Applicability
- Component
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2303008EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 29 %
- Compatibility Code
- ZB5
- Group Of Product
- flush push with marking
- Main Group
- push-button
- Mechanical Durability
- 10000000 cycles
- Operator Profile
- black flush, down arrow white)
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Color Of Marking
- white
- Operator Profile 1 Marking
- down arrow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; APAC
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 17.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Range Of ProductHarmony XALF, Harmony XB5
Certificate AgencyDNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.03289195102300111
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.13487309761150257
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content6 %
Device Short NameZB5
Head Typestandard
Markingdown arrow
Mounting Diameter22 mm
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for non-illuminated push-button
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station NameXALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
X C Productflush push with marking
Pep Code"ENVPEP2303008EN"
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2303008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- "ENVPEP2303008EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level29 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.17891715735759633
Environmental Disclosure"ENVPEP2303008EN"
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XALF, Harmony XB5
Product Or Component Typehead for non-illuminated push-button
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
