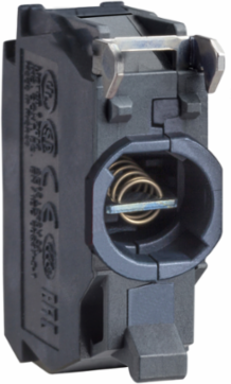

Schneider Electric ZBVB34 Light block, Harmony XB4, white, for head 22mm, integral LED, plug-in connector, 24V AC DC
- MPN: ZBVB34
- PPN: SCH-ZBVB34
CAD
$53.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB, green light block operates with an integral LED. It is supplied with 24V AC/DC and uses plug-in terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Light Block Supply
- direct
- Connections - Terminals
- plug-in connector
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceprotected LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourgreen
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.016 kg
- Service Life
- 100000 h at rated voltage and 25 °C
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Current Consumption18 mA
Surge Withstand1 kV IEC 61000-4-5
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- [Us] Rated Supply Voltage
- 24 V
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
