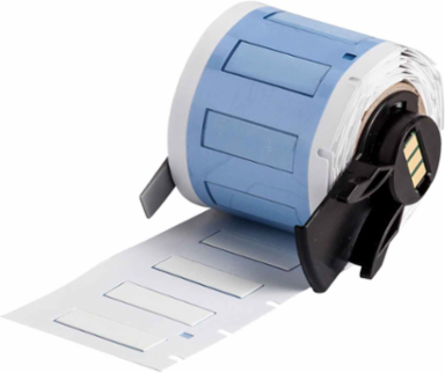

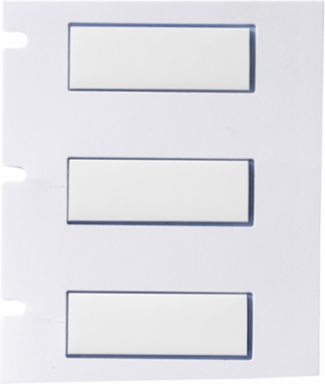

Brady PSPT-187-1-WT PermaSleeve Wire Marking Sleeves 0.187 Inch Dia x 1 Inch W, White, Roll of 100
- MPN: PSPT-187-1-WT
- UPC: 662820184584
- PPN: BRD-PSPT-187-1-WT
- UNSPSC: 55121612
CAD
$103.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

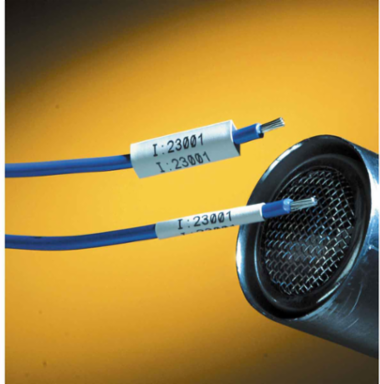

The B-342 Polyolefin PermaSleeve material is a non-adhesive, heat-shrinking sleeve that fits around wires or cables for easy permanent identification
Features
- 3:1 heat-shrinking wire sleeve is ideal for labeling in harsh environments and is resistant to chemicals, grease, oil and cleaning agents
- Polyolefin wire marking sleeves have a smudge-proof finish and print in black text on a white background
- PermaSleeve labels provide wire identification that combines speed, ease of use and permanence for long-lasting, high quality identification
- Cold resistant and flame-retardant with an operating temperature of -67° F to 275° F (-55° C to 135° C)

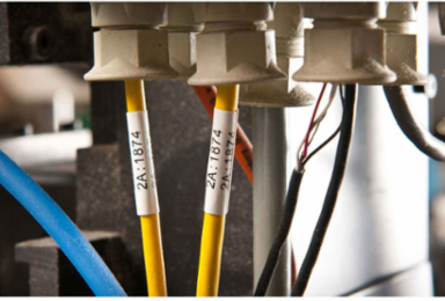

- PermaSleeve wire labels are ideal for electrical contractors, maintenance crews and industrial professionals
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Bulk Part
- Not a Bulk Part
- Diagram
- Icon 14 (v)
- Finish
- Matte
- Label/Media Format
- Roll
- Max. Lines of Text
- 2
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- M611; BMP61; BMP71; TLS-PC LINK
- Quantity per Roll
- 100
- Recommended Ribbon
- M61-R6610; M71-R6600; R6610
- Shape
- Rectangle
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Total Quantity
- 100
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H x 1.1677 in W
- Dimensions 2
- 0.335 in H x 1.1677 in W
- Height (mm/cm/m)
- 8.50 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.81 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.062 in
- Minimum Wire Gauge
- 18 AWG
- Recovered Diameter (mm/cm/m)
- 1.6 mm
- Roll Width (mm/cm/m)
- 25.4 mm
- Size - Width (mm)
- 25.78 mm
- Sleeve Size (mm/cm/m)
- 4.8 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Vertical Repeat (mm)
- 19.05 mm
- Wire Diameter Range
- 0.062 in to 0.15 in
Brand NameBrady®
ColorWhite
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBMP®61 Labeling System; BMP®71 Label Printer (with adapter); BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System
Manufacturer Part NumberPSPT-187-1-WT
National Stock Number (NSN)7690014980864
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)M611; BMP61; BMP71
Quantity per Row1
Ribbon SeriesR4310
Shrink Ratio3:1
Total Qty per Pack100 Sleeve(s) / Roll
Trade NameBMP®61 BMP®71 TLS 2200® TLS-PC Link™ PermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)25.78 mm W x 8.50 mm H
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Maximum Wire Gauge12 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.57 mm
Recovered Diameter (in/ft/yd)0.062 in
Roll Width (in/ft/yd)1 in
Sign Size-General0.335 in x 1.1677 in
Sleeve Size (in/ft/yd)0.187 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat0.625 in
Width (in/ft/yd)1.1677 in
Wire Gauge Range18 AWG to 12 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
