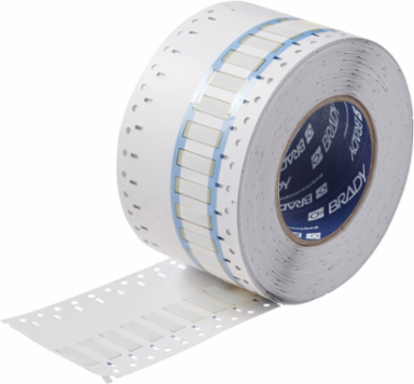

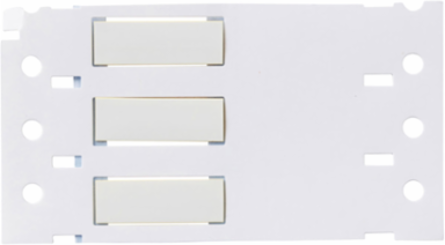

Brady SA-3PS-187-1-WT BSP45 Heat Shrink Polyolefin Wire Marking Sleeves, 0.187 Inch Dia x 1 Inch W, 2500 per Roll

MPN: SA-3PS-187-1-WT
UPC: 754473549145
PPN: BRD-SA-3PS-187-1-WT
UNSPSC: 55121612

$1739.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.

Documentation & Downloads

Specifications

Key Specifications

Applications	Wire and Cable Labeling
Color	White
Finish	Matte
Label/Media Format	Roll
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP72
Quantity per Row	1
Ribbon Series	R4300; R6600
Shrink Ratio	3:1
Suggested Ribbon Series	R4300; R4502S; R6600; R6700
Total Quantity	2500
Brady Material Number	B-342
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Diameter as Supplied (mm/cm/m)	4.8 mm
Dimensions (Metric)	25.40 mm W x 8.50 mm H
Height (in/ft/yd)	0.335 in
Maximum Service Temperature °C	135 °C
Maximum Wire Diameter (in/ft/yd)	0.15 in
Maximum Wire Gauge	10 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	1.57 mm
Recovered Diameter (in/ft/yd)	0.062 in
Recovered Wall Thickness (in/ft/yd)	0.02 in
Roll Width (in/ft/yd)	1 in
Size - Width (mm)	25.40 mm
Sleeve Size (mm/cm/m)	4.8 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)	25.4 mm
Web Width (in/ft/yd)	3.5 in
Wire Diameter Range	0.062 in to 0.15 in

Brand Name	Brady®
Enables Industry Compliance	ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized

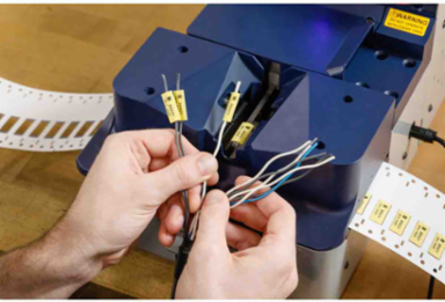

For Use with Printer	BradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	BP-PR 300 PLUS; BBP72
Quantity per Roll	2500
Recommended Ribbon	IP-R6606; R6606
Shape	Rectangle
Sleeve Slits	No
Total Qty per Pack	2500 Sleeve(s) / Roll
Trade Name	BSP™45
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable
SAP B-Number	B-342
Diameter as Supplied (in/ft/yd)	0.187 in
Dimensions	0.335 in H
Dimensions 2	0.335 in H
Height (mm/cm/m)	8.50 mm
Maximum Service Temperature °F	275 °F
Maximum Wire Diameter (mm/cm/m)	3.81 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.062 in
Minimum Wire Gauge	16 AWG
Recovered Diameter (mm/cm/m)	1.6 mm
Recovered Wall Thickness (mm/cm/m)	0.5 mm
Roll Width (mm/cm/m)	25.4 mm
Sleeve Size (in/ft/yd)	0.187 in Dia x 1 in W
Sleeve Width (in/ft/yd)	1 in
Vertical Repeat	0.625 in
Web Width (mm/cm/m)	88.9 mm
Wire Gauge Range	16 AWG to 10 AWG

Regulatory Information

CA Prop 65 Labeled	Yes
Contains CA PROP 65 Substance	Yes Contains-Label required
Contains CA PROP 65 Warning Type	Cancer
EU RoHS Compliance	Pass 2011/65/EU
SDS Safety Data Sheet required	No = MSDS/SDS is not required

CA Prop 65 Label Warning	WARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 Substance	Yes
Contains CA Prop 65 Cancer Causing Chemical	Antimony Trioxide
EU RoHS Compliant	Yes
