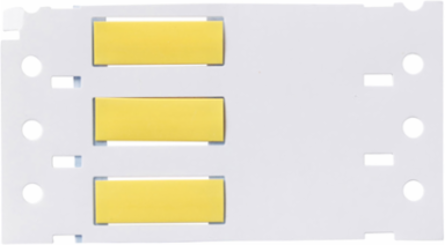

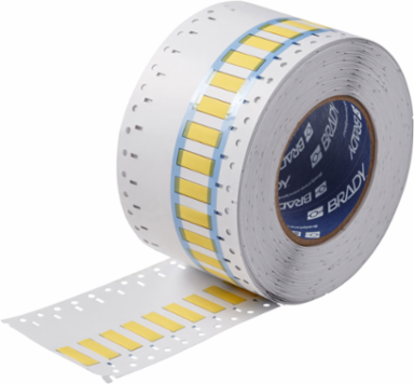

Brady SA-3PS-187-1-YL BSP45 Heat Shrink Wire Marking Sleeves, 0.187 Inch Dia x 1 Inch W, Yellow
Brady SA-3PS-187-1-YL BSP45 Heat Shrink Wire Marking Sleeves, 0.187 Inch Dia x 1 Inch W, Yellow
- MPN: SA-3PS-187-1-YL
- UPC: 754473547554
- PPN: BRD-SA-3PS-187-1-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1853.03/ EA
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Quantity per Row
- 1
- Ribbon Series
- R4300; R6600
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R4300; R4502S; R6600; R6700
- Total Quantity
- 2500
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 4.8 mm
- Dimensions (Metric)
- 25.40 mm W x 8.50 mm H
- Height (in/ft/yd)
- 0.335 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.15 in
- Maximum Wire Gauge
- 10 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.57 mm
- Recovered Diameter (in/ft/yd)
- 0.062 in
- Recovered Wall Thickness (in/ft/yd)
- 0.02 in
- Roll Width (in/ft/yd)
- 1 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 4.8 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Web Width (in/ft/yd)
- 3.5 in
- Wire Diameter Range
- 0.062 in to 0.15 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized

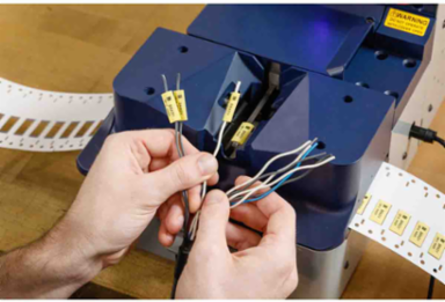

For Use with PrinterBradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBP-PR 300 PLUS; BBP72
Quantity per Roll2500
Recommended RibbonIP-R6606; R6606
ShapeRectangle
Sleeve SlitsNo
Total Qty per Pack2500 Sleeve(s) / Roll
Trade NameBSP™45
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (in/ft/yd)0.187 in
Dimensions0.335 in H
Dimensions 20.335 in H
Height (mm/cm/m)8.50 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)3.81 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.062 in
Minimum Wire Gauge16 AWG
Recovered Diameter (mm/cm/m)1.6 mm
Recovered Wall Thickness (mm/cm/m)0.5 mm
Roll Width (mm/cm/m)25.4 mm
Sleeve Size (in/ft/yd)0.187 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat0.625 in
Web Width (mm/cm/m)88.9 mm
Wire Gauge Range16 AWG to 10 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliantYes
