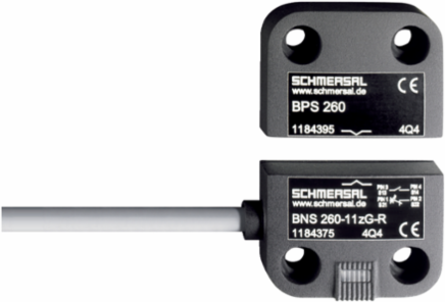

Schmersal 101184386 Magnetic Safety Sensor BNS 260-02/01Z-L, 26 mm x 36 mm, IP67, 0.4 A

MPN: 101184386
PPN: SCM-101184386

$220.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Magnetic Safety Sensor BNS 260-02/01Z-L, 26 mm x 36 mm, IP67, 0.4 A

Features

Pre-wired cable
Thermoplastic enclosure
small body
Concealed mounting possible
26 mm x 36 mm x 13 mm
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling

Documentation & Downloads

Specifications

Electrical data

Required rated short-circuit current	100 A
Switching current, maximum	0.4 A
Switching frequency, maximum	5 Hz

Switching voltage, maximum	75 VDC
Switching capacity, maximum	10 VA

Note

Note (General)	Contact symbols shown for the closed condition of the guard device. \| The contact configuration for versions with or without LED is identical.

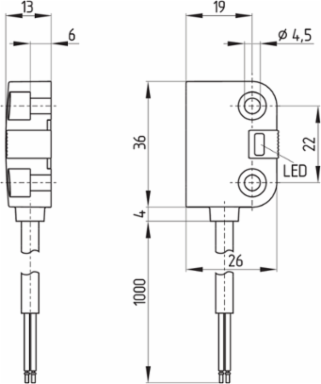

Mechanical data - Dimensions

Length of sensor	13 mm
Height of sensor	36 mm

Width of sensor	26 mm

Ambient conditions - Insulation values

Rated insulation voltage U	50 VAC

Rated impulse withstand voltage U	0.8 kV

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

Safety classification - Safety outputs

B	25,000,000 Operations

General data - Features

Number of normally closed (NC)	3
Number of cable wires	6

Number of safety contacts	2

General data

Standards	BG-GS-ET-14 \| EN IEC 60947-5-3
Working principle	Magnetic drive
Enclosure material	Glass-fibre, reinforced thermoplastic

Coding level according to EN ISO 14119	Low
Installation conditions (mechanical)	quasi-flush
Gross weight	60 g

Safety classification

Standards	EN ISO 13849-1

Mission time	20 Year(s)

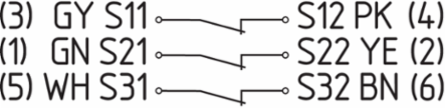

Wiring example

Note (Wiring diagram)	The contacts S11-S12 and S21-S22 must be integrated in the safety circuit.

Ambient conditions

Degree of protection	IP67
Storage and transport temperature, minimum	-25 °C
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm

Ambient temperature	-25 ... +70 °C
Storage and transport temperature, maximum	+70 °C
Restistance to shock	30 g / 11 ms

Mechanical data - Connection technique

Termination	Cable
Wire cross-section	0.25 mm
Material of the Cable mantle	PVC

Length of cable	1 m
Wire cross-section	23 AWG

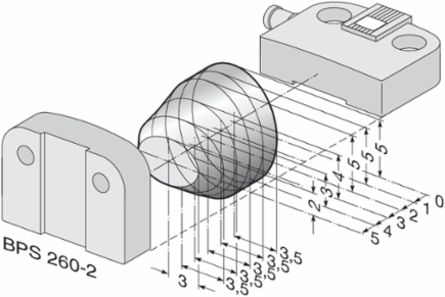

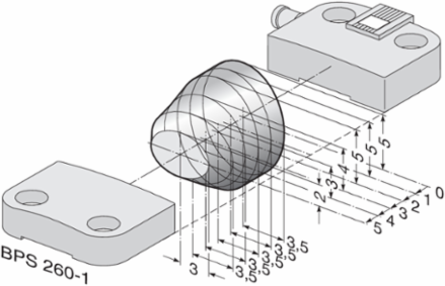

Mechanical data - Switching distances according EN IEC 60947-5-3

Note (Switching distance Sn)	Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
Assured switching distance "OFF" S	15 mm
