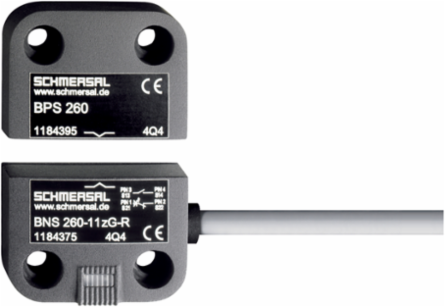

Schmersal 101184374 Magnetic Safety Sensor BNS 260-02/01ZG-R, 26 mm x 36 mm x 13 mm, IP67
- MPN: 101184374
- PPN: SCM-101184374
CAD
$223.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 260-02/01ZG-R, 26 mm x 36 mm x 13 mm, IP67
Features
- Pre-wired cable
- Thermoplastic enclosure
- small body
- Concealed mounting possible
- 26 mm x 36 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
- Required rated short-circuit current
- 100 A
- Switching current, maximum
- 0.01 A
- Switching frequency, maximum
- 5 Hz
Switching voltage, maximum24 VDC
Switching capacity, maximum0.2 W

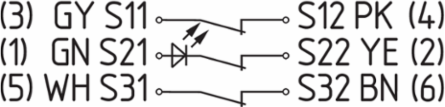

Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.

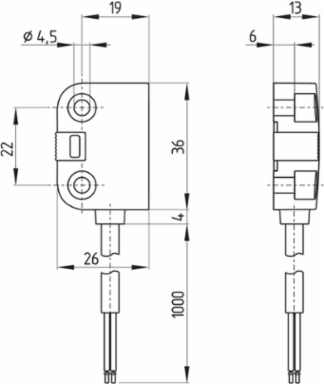

Mechanical data - Dimensions
- Length of sensor
- 13 mm
- Height of sensor
- 36 mm
Width of sensor26 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 75 VDC
Rated impulse withstand voltage U0.8 kV
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
General data - Features
- Integral system diagnostics, status
- Yes
- Number of safety contacts
- 2
Number of normally closed (NC)3
Number of cable wires6
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight55 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Wiring example
- Note (Wiring diagram)
- The contacts S11-S12 and S21-S22 must be integrated in the safety circuit.
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.25 mm
Length of cable1 m
Material of the Cable mantlePVC

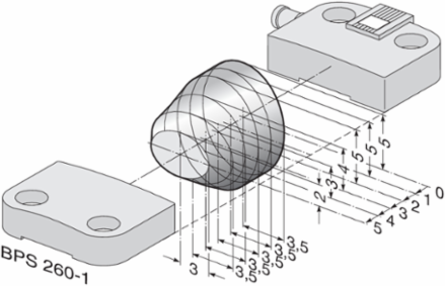

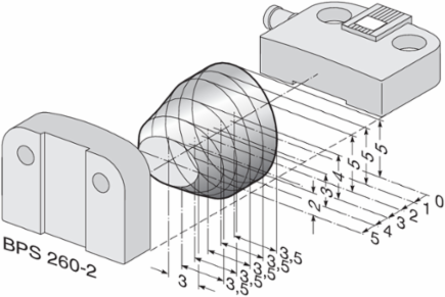

Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
- Assured switching distance "OFF" S
- 15 mm
Assured switching distance "ON" S5 mm
Mechanical data
- Actuating element
- Magnet
- Direction of motion
- Head-on to the active surface
Door hingeRight
Accessory
- Recommendation (actuator)
- BPS 260
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
