Schmersal 101166315 Magnetic Safety Sensor BNS 30 with M30 Thread, IP67, 190 g
- MPN: 101166315
- PPN: SCM-101166315
CAD
$456.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 30 with M30 Thread, IP67, 190 g
Features
- Metal enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303 SS
- no mechanical wear
- Ø M30
- Insensitive to transverse misalignment
- Insensitive to soiling
- With integral evaluation
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 250 VAC
- Switching capacity, maximum
- 750 W
- Switching frequency, maximum
- 5 Hz
Switching current, maximum3 A
Time to readiness, maximum50 ms
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device.

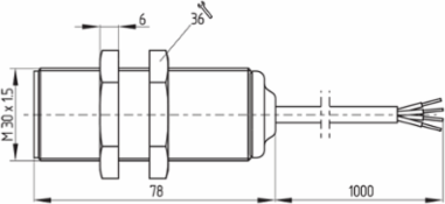

Mechanical data - Dimensions
- ISO thread of the sensor
- M30
Length of sensor78 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Safety monitoring module integrated
- Yes
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Brass
- Gross weight
- 190 g
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Enclosure coating materialnickel-plated
Duration of risk, maximum50 ms
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms

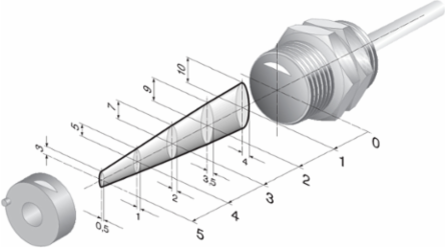

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 5 mm
Assured switching distance "OFF" S15 mm
Mechanical data
- Actuating element
- Magnet
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
