Schmersal 101144214 BNS 300-01ZG-ST Magnetic Safety Sensor, M30, 78 mm Length, IP67, 24 VDC
- MPN: 101144214
- PPN: SCM-101144214
CAD
$501.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

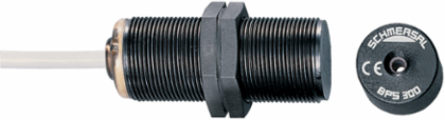

BNS 300-01ZG-ST Magnetic Safety Sensor, M30, 78 mm Length, IP67, 24 VDC
Features
- Connector M12, 4-pole
- Thermoplastic enclosure
- Long life
- Suitable for food processing industry only in combination with BPS 303
- no mechanical wear
- Ø M30
- Insensitive to transverse misalignment
- Insensitive to soiling
- With integral evaluation
Documentation & Downloads
Specifications
Electrical data
- Switching voltage, maximum
- 250 VAC
- Switching capacity, maximum
- 750 W
- Switching frequency, maximum
- 5 Hz
Switching current, maximum3 A
Time to readiness, maximum50 ms
Note
- Note (General)
- Contact symbols shown for the closed condition of the guard device.

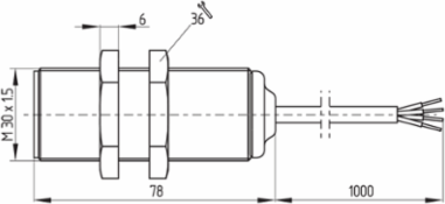

Mechanical data - Dimensions
- ISO thread of the sensor
- M30
- Length of sensor
- 78 mm
width across flats36 BK
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Scope of delivery of mounting material2x nuts M30 x 1.5
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Integral system diagnostics, status
- Yes
- Number of normally closed (NC)
- 1
Safety monitoring module integratedYes
Number of safety contacts1
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
- Gross weight
- 50 g
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Material of the nutsThermoplastic
Duration of risk, maximum50 ms
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector M12
Electrical data - Relay outputs
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category DC-130.03 A

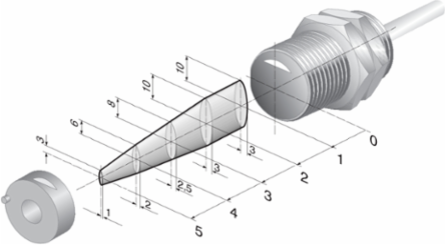

Mechanical data - Switching distances according EN IEC 60947-5-3
- Assured switching distance "ON" S
- 5 mm
Assured switching distance "OFF" S15 mm
Mechanical data
- Actuating element
- Magnet
- Tightening torque of nuts, maximum
- 3 Nm
Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 300 | BPS 303 | BPS 303 SS
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Status indication
- Note (Integral System Diagnostics, status )
- The LED is illuminated when the guard is closed.
