Schmersal 101150267 BNS 33 Magnetic Safety Sensor, 10 m Length, IP67, 2 Safety Contacts
- MPN: 101150267
- PPN: SCM-101150267
CAD
$220.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
BNS 33 Magnetic Safety Sensor, 10 m Length, IP67, 2 Safety Contacts
Features
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
| Switching current, maximum | 0.01 A |
|---|---|
| Switching frequency, maximum | 5 Hz |
| Switching capacity, maximum | 0.2 W |
|---|
Note

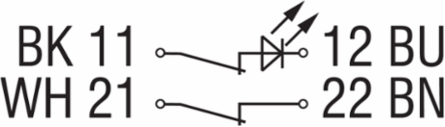

| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. |
|---|

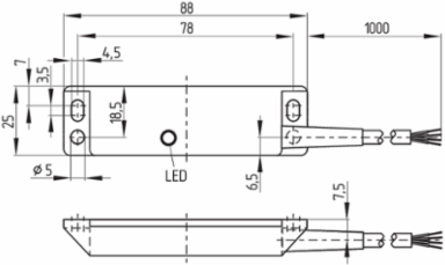

Mechanical data - Dimensions
| Length of sensor | 13 mm |
|---|---|
| Height of sensor | 25 mm |
| Width of sensor | 88 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Electrical data - Digital Output
| Design of control elements | Miscellaneous, Reed contacts |
|---|
General data - Features
| Integral system diagnostics, status | Yes |
|---|---|
| Number of normally closed (NC) | 2 |
| Number of cable wires | 4 |
| Prerequisite evaluation unit | Yes |
|---|---|
| Number of safety contacts | 2 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | not flush |
| Gross weight | 370 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Length of cable | 10 m |
|---|---|
| Wire cross-section | 23 AWG |
| Wire cross-section | 0.25 mm |
|---|---|
| Material of the Cable mantle | PVC |

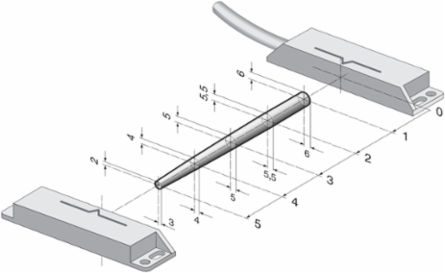

Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 5 mm | 8 mm |
|---|
| Assured switching distance "OFF" S | 15 mm | 18 mm |
|---|
Mechanical data
| Actuating element | Magnet |
|---|---|
| Direction of motion | Head-on to the active surface |
| Note (Repeat accuracy R) | Wiederholgenauigkeit R ≤ 0,1 x S |
|---|
Accessory
| Recommendation (actuator) | BPS 33-2326 | BPS 33 |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
