Schmersal 101128793 Magnetic Safety Sensor BNS 33-02ZG-2187, 88 mm x 25 mm x 13 mm, IP67
- MPN: 101128793
- PPN: SCM-101128793
CAD
$172.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor BNS 33-02ZG-2187, 88 mm x 25 mm x 13 mm, IP67
Features
- Individual contact outlet
- LED version
- Thermoplastic enclosure
- Concealed mounting possible
- Insensitive to transverse misalignment
- 88 mm x 25 mm x 13 mm
- Long life
- no mechanical wear
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 24 VDC |
|---|---|
| Switching capacity, maximum | 0.2 W |
| Switching current, maximum | 0.01 A |
|---|---|
| Switching frequency, maximum | 5 Hz |
Note

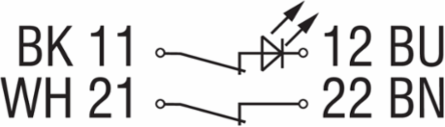

| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. |
|---|

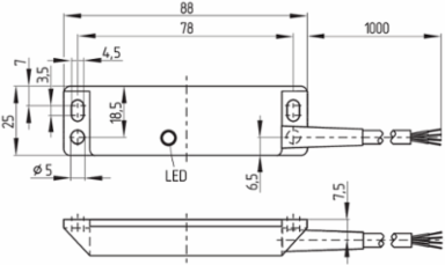

Mechanical data - Dimensions
| Length of sensor | 13 mm |
|---|---|
| Height of sensor | 25 mm |
| Width of sensor | 88 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 25,000,000 Operations |
|---|
Electrical data - Digital Output
| Design of control elements | Miscellaneous, Reed contacts |
|---|
General data - Features
| Integral system diagnostics, status | Yes |
|---|---|
| Number of normally closed (NC) | 2 |
| Prerequisite evaluation unit | Yes |
|---|---|
| Number of normally open (NO) | 1 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | not flush |
| Gross weight | 61 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Wire cross-section | 0.25 mm |
| Material of the Cable mantle | PVC |
| Length of cable | 1 m |
|---|---|
| Wire cross-section | 23 AWG |

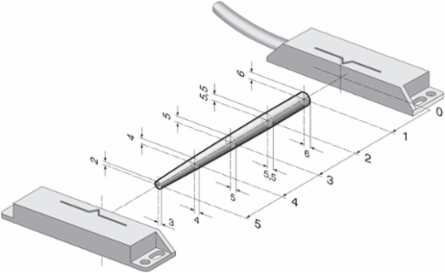

Mechanical data - Switching distances according EN IEC 60947-5-3
| Assured switching distance "ON" S | 5 mm | 8 mm |
|---|
| Assured switching distance "OFF" S | 15 mm | 18 mm |
|---|
Mechanical data
| Active area | lateral |
|---|---|
| Note (Repeat accuracy R) | Wiederholgenauigkeit R ≤ 0,1 x S |
| Actuating element | Magnet |
|---|---|
| Direction of motion | Head-on to the active surface |
Accessory
| Recommendation (actuator) | BPS 33-2326 | BPS 33 |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | cULus |
|---|
Status indication
| Note (Integral System Diagnostics, status ) | The LED is illuminated when the guard is closed. |
|---|
