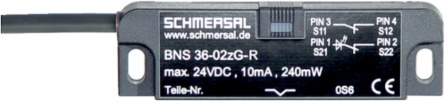

Schmersal 101193234 Magnetic Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, 1 m Cable
- MPN: 101193234
- PPN: SCM-101193234
CAD
$192.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Safety Sensor, 88 mm x 25 mm x 13 mm, IP67, 1 m Cable
Features
- Thermoplastic enclosure
- Long life
- no mechanical wear
- 88 mm x 25 mm x 13 mm
- Concealed mounting possible
- Insensitive to transverse misalignment
- Insensitive to soiling
Documentation & Downloads
Specifications
Electrical data
| Switching voltage, maximum | 24 VDC |
|---|---|
| Switching capacity, maximum | 0.2 W |
| Switching current, maximum | 0.01 A |
|---|---|
| Switching frequency, maximum | 5 Hz |
Note

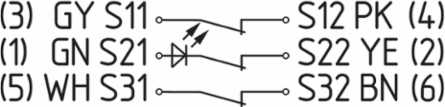

| Note (General) | Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical. |
|---|

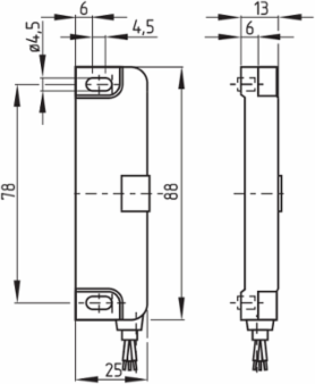

Mechanical data - Dimensions
| Length of sensor | 13 mm |
|---|---|
| Height of sensor | 25 mm |
| Width of sensor | 88 mm |
|---|
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
Safety classification - Safety outputs
| B | 25,000,000 Operations |
|---|
General data - Features
| Integral system diagnostics, status | Yes |
|---|---|
| Number of safety contacts | 2 |
| Number of normally closed (NC) | 3 |
|---|---|
| Number of cable wires | 6 |
General data
| Standards | BG-GS-ET-14 | EN IEC 60947-5-3 |
|---|---|
| Working principle | Magnetic drive |
| Enclosure material | Glass-fibre, reinforced thermoplastic |
| Coding level according to EN ISO 14119 | Low |
|---|---|
| Installation conditions (mechanical) | quasi-flush |
| Gross weight | 91 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +70 °C |
| Restistance to shock | 30 g / 11 ms |
Mechanical data - Connection technique
| Termination | Cable |
|---|---|
| Wire cross-section | 0.25 mm |
| Material of the Cable mantle | PVC |
| Length of cable | 1 m |
|---|---|
| Wire cross-section | 23 AWG |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Note (Switching distance Sn) | Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range. |
|---|---|

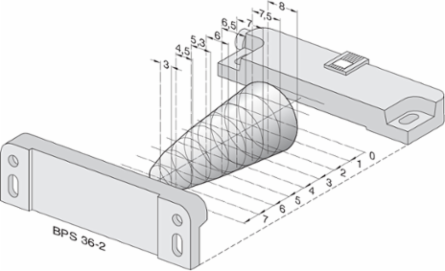

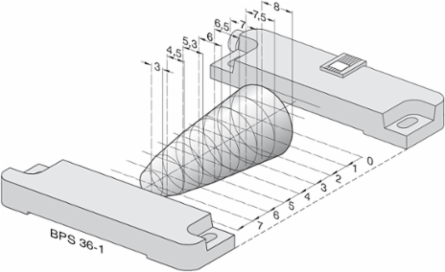

| Assured switching distance "OFF" S | 17 mm |
| Assured switching distance "ON" S | 7 mm |
|---|
Mechanical data
| Actuating element | Magnet |
|---|---|
| Direction of motion | Head-on to the active surface |
| Door hinge | Right |
|---|
Accessory
| Recommendation (actuator) | BPS 36-2 |
|---|
| Recommended safety switchgear | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | BG | cULus |
|---|
Status indication
| Note (Integral System Diagnostics, status ) | The LED is illuminated when the guard is closed. |
|---|
